Network Setup for Clear-Com IVC Functionality (V Series Panels, Directs, Trunks, LQ and Agent-IC)

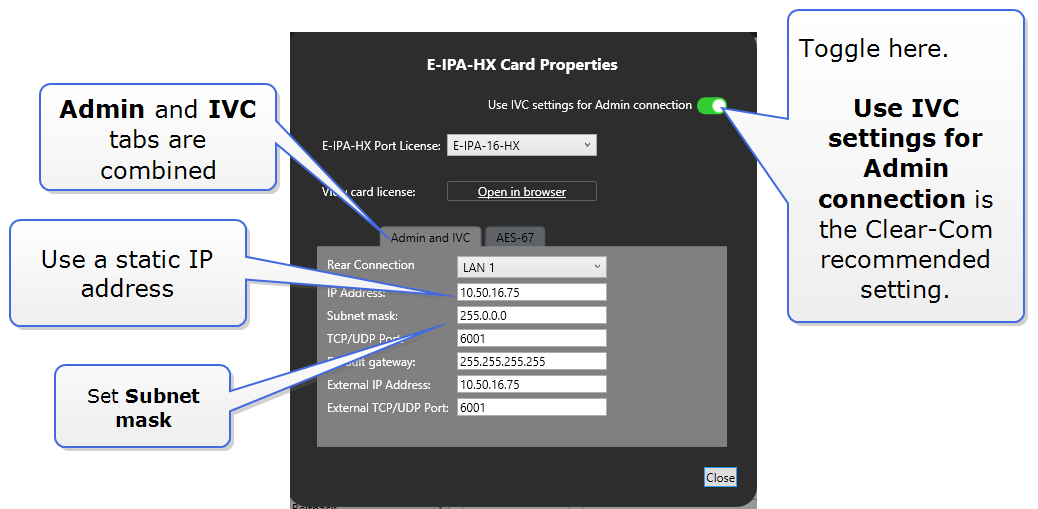

When configuring IVC functionality you must allocate a static IP address to this connection.
Note: | You must configure the subnet mask to match your network topology when using a static IP address. Contact your network administrator for more information. |
When using IVC functionality, the recommended setup is to combine IVC and administration functions on the same IP address (default setting).
You can separate Admin from IVC connectivity, but if you do this, you must put administration functions and IVC functionality on separate subnets.
In this case, the Admin connection can be given a DHCP IP setting, while the IVC connection must have a static IP address
