Configure the E-IPA card in E1 mode

To configure the card in E1 mode you must set the card type to E-IPA-HX E1 Mode in Cards and Ports. When you have done this, the system will automatically create slots for 50 beltpacks and 10 FreeSpeak II transceivers in the configuration software and the system can be set up and configured as usual.

For how to cable the E1 system see the Clear-Com matrix guides available from the Clear-Com website.

How to Configure the E-IPA-HX card in E1 Mode

  1. In the EHX software, navigate to Matrix > Hardware > Cards and Ports.

  2. Right click on the card slot to Set Card Type.

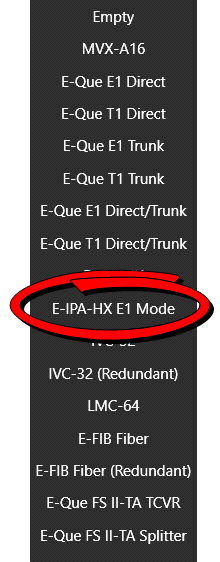

  3. Select E-IPA-HX E1 Mode.E-IPA E1 mode

  4. When done, the system will prompt you to Apply Map to Matrix.
