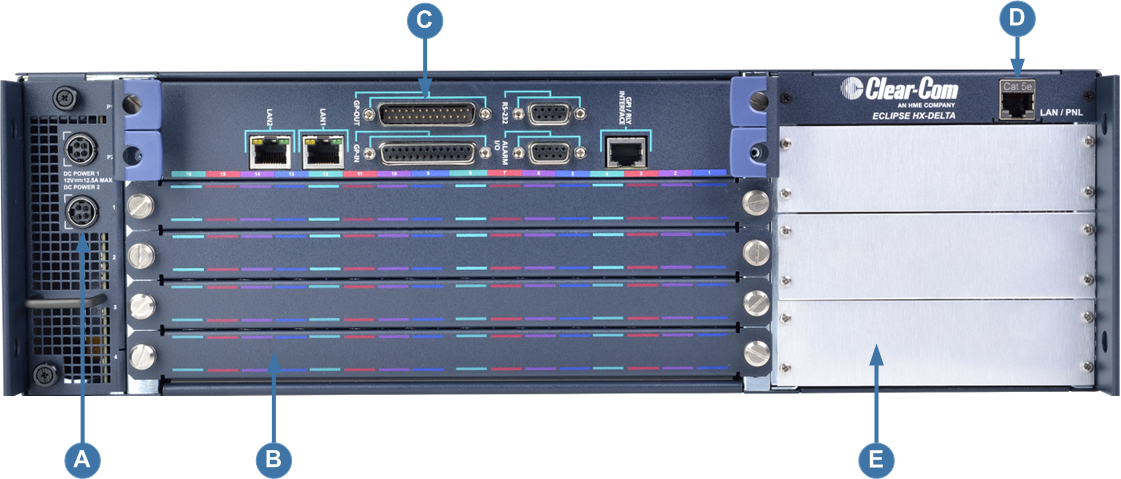

Eclipse HX-Delta Rear Panel
|
Key to the Eclipse HX-Delta rear panel |
|
|---|---|
|
Feature |
Description |
|
|
DC power supply connectors. For more information about the 12V external power supplies, see Power Supplies. |
|
|
Spare slots for interface card rear connector panels. All front installed interface cards require a corresponding rear connector panel. Blank panels can be installed to unused slots. The Eclipse HX-Delta has four slots available for interface cards (two for the Delta Lite). For more information, see Interface Cards. |
|
|
CPU card rear panel. The CPU card rear panel houses connectors for an external PC, network, interfaces, alarms and other matrices. Up to two CPU cards can be installed to the matrix (one for the Delta Lite), but only one rear-panel CPU card is required. Whichever of the two front-installed CPU cards is acting as master will work in conjunction with this card. For more information, see CPU Card. |
|
|
LAN / PNL connector. Rear to front Ethernet / panel feed through |
|
|
Interface module slots. The Eclipse HX-Delta has three built-in interface module slots. For more information, see Interface Modules. |
