Introduction to Key Groups

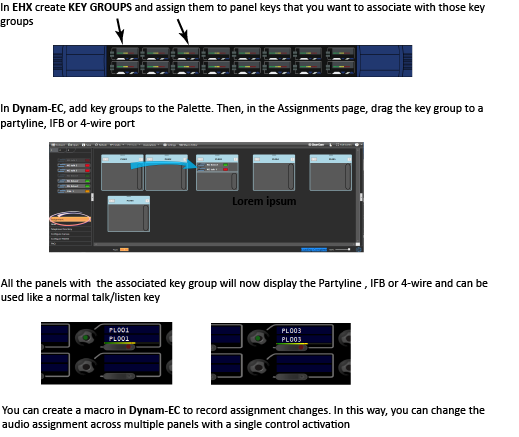

Key groups comprise a list of panels and user keys that can be grouped and assigned in Dynam-EC on the move, thus saving lots of EHX configuration work.

Key groups provide a way of changing the audio configuration on keys for multiple panels (in a system or linked set) without having to download the configuration changes to a matrix.

Up to 100 key groups can be set up on a system.

Key groups can be used with the following targets:

• 4-Wire Port

• Panel Port

• Partyline

• IFB

For example, you can:

• Change the audio assignment on panel key(s) from Partyline 1 to Partyline 2

• Change the audio assignment on panel key(s) from a direct to Panel 1 to a direct to Panel 2

• Change the audio assignment on panel key(s) from a partyline to a direct
