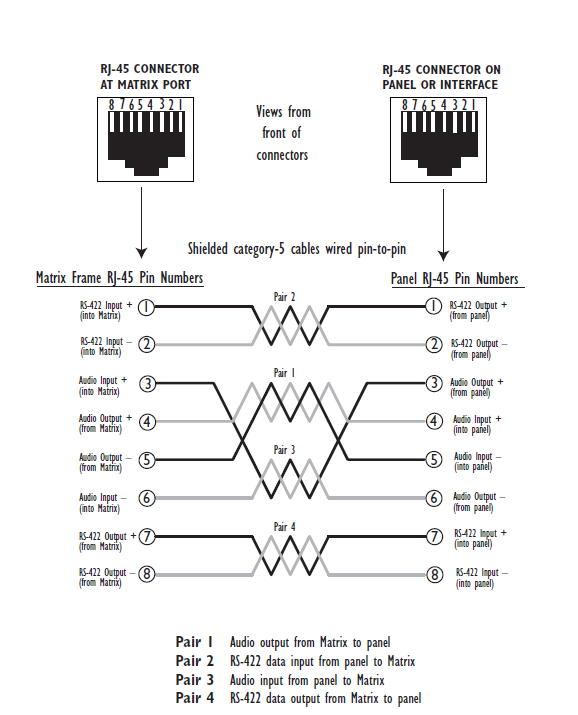

4-Pair Analog Wiring
4-pair analog wiring is performed with shielded CAT5 RJ-45 cable:
|
Pair |
Description |
|---|---|
|
Pair 1 |
Transmits analog audio from the matrix to the panel. |
|
Pair 2 |
Transmits digital data from the panel back to the matrix. |
|
Pair 3 |
Transmits audio from the panel to the matrix. |
|
Pair 4 |
Transmits digital data from the matrix back to the panel. |
