Edge Beltpack Menu Access

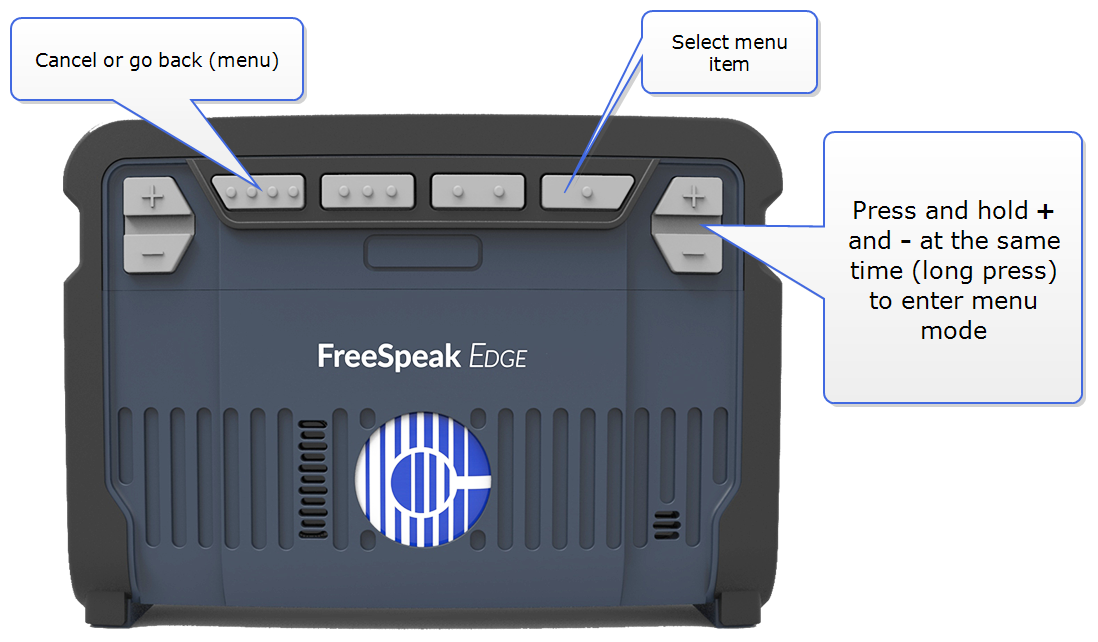

To enter menu mode on an Edge beltpack, press and hold either set of the + and - keys at the same time (2 second press).

Edge beltpack menu access

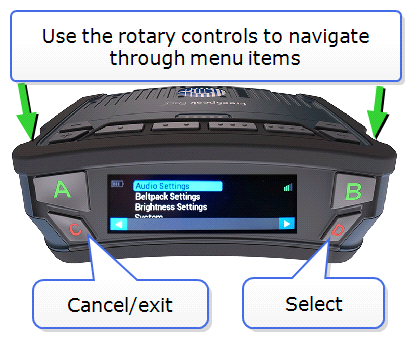

Once in the menu, use, the rotary keys to scroll through the list. Use the D key to select a menu item. Use the C key to go back.

Use the C key to exit menu mode, or allow it to time out.

Note: When in menu mode you can also use the "." and "...." keys to select and cancel menu options.
Note: The beltpack has four menu levels that are defined by the beltpack role: advanced, normal, basic and none . To change the menu level access from your beltpack you must input the menu access pin code. By default this is 4632. To find the menu access code in the configuration software navigate to: Matrix>Configuration>Preferences>Menu Access Code. If you change the menu access code in the configuration software, you must Apply Map to Matrix for the change to take effect.
Note: The various levels of menu access are described in FreeSpeak Edge Beltpack Menus.
