Registering beltpacks using USB cable

You must have a USB A to micro USB B data cable and the beltpacks to hand before you start.

Note: You cannot register beltpacks with a charging cable.

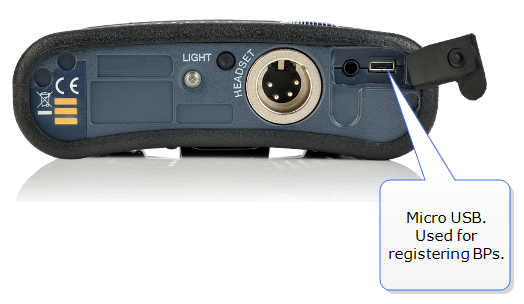

  1. Connect a beltpack to the Base Station using a USB A to micro USB B cable. usb cable

The beltpack can be powered on either before or after connection.

Show me. Click/touch image to enlarge/minimise beltpack base

The Base Station will show 'Beltpack is now registered' in the front menu screens.

  1. Select an available Role from the beltpack screen.

Show me select BP Role

The beltpack is now registered and ready for use.

Note: A Role can be fixed to a beltpack. If you fix a Role to a beltpack, the beltpack automatically selects the Role on powering.
