What is FreeSpeak II?
The FreeSpeak II wireless intercom system includes wired and wireless beltpacks that communicate using a cellular network of transceivers (1.9 and 2.4 GHz).
For more information about the FreeSpeak II wireless intercom system, visit the FreeSpeak II Knowledge Center.
These different devices communicate seamlessly.
Show me.
Pre-configured beltpack Roles allow both rapid set-up and flexible configuration.
- Use simple default set-up; all beltpacks on Channel 1 and 2 assigned to A and B with call signal on C and D.
- or, customize the set-up to suit your needs.
- System has either 25 (FSII-BASE-II) or 5 (FSII-BASE-II-5) beltpack Roles. FSII-BASE-II-5 offers a license to upgrade to 25 beltpacks if required.
See Using Roles.
Use the front panels of the Base Station, or the browser-based Core Configuration Manager (CCM).

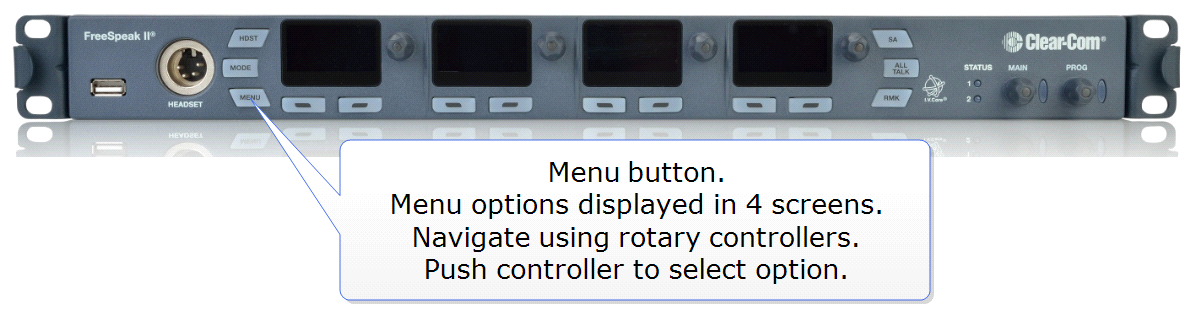

Press Menu button on the Base Station to access controls:
For more information, see Using the Base Station.

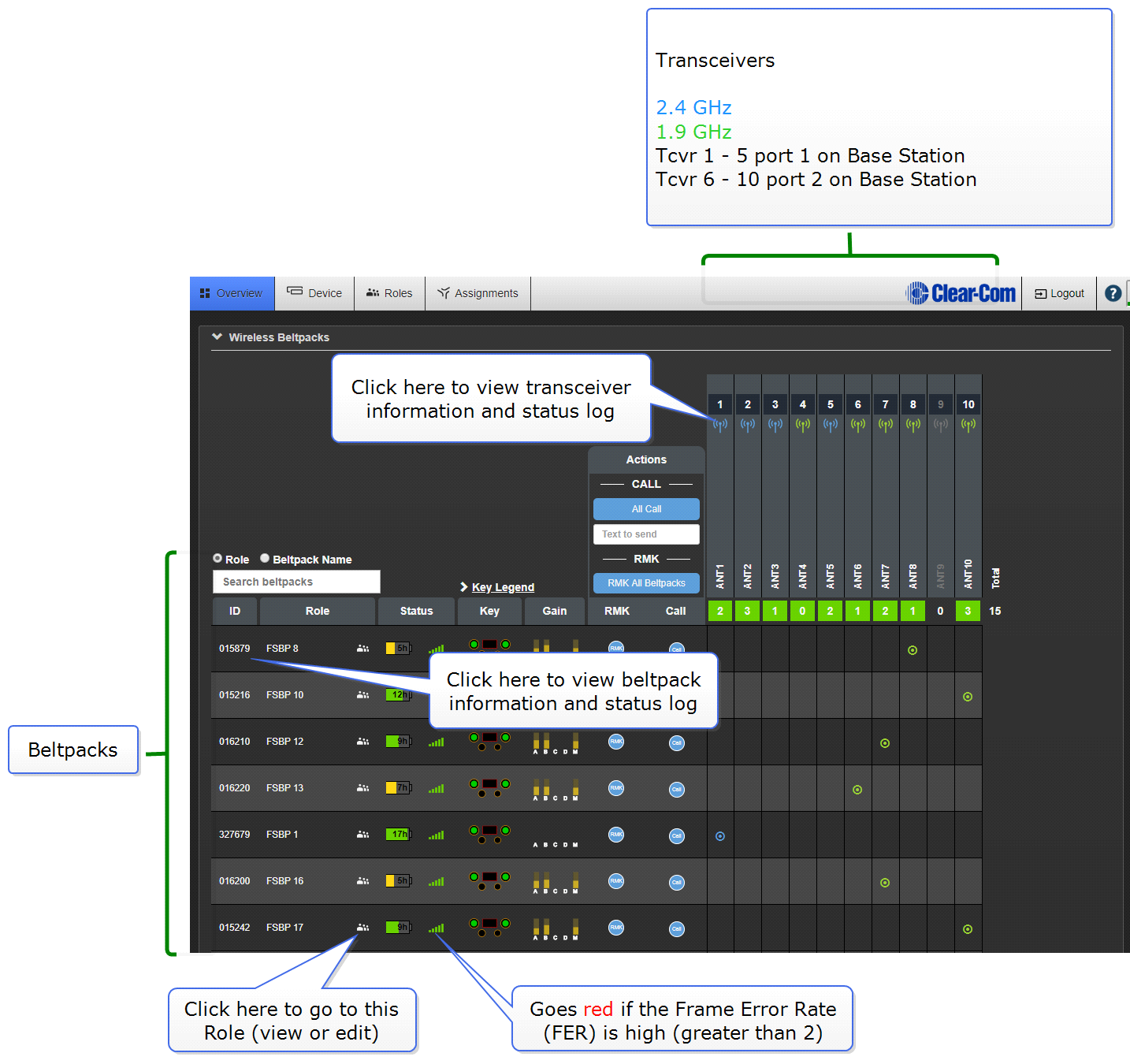

The browser-based Core Configuration Manager (CCM) is accessed via device IP address.
For more information, see Accessing the Core Configuration Manager (CCM)
- Up to 25 wireless beltpacks,10 transceivers per base
- FSII-BASE-II: 25 beltpack capacity
- FSII-BASE-II-5: 5 beltpack capacity. To upgrade to 25 beltpacks you need to obtain a licence from your Clear-Com dealer.
- 12 Partyline Channels
- 12 Group set-ups
- Beltpack to beltpack connection (point-to-point)
- Completely scalable and configurable
- Up to four GPO and two GPI controls
Specifications
Regulatory compliance
FreeSpeak II Base 1.9 GHz/2.4 GHz
