Digital Partyline Intercom

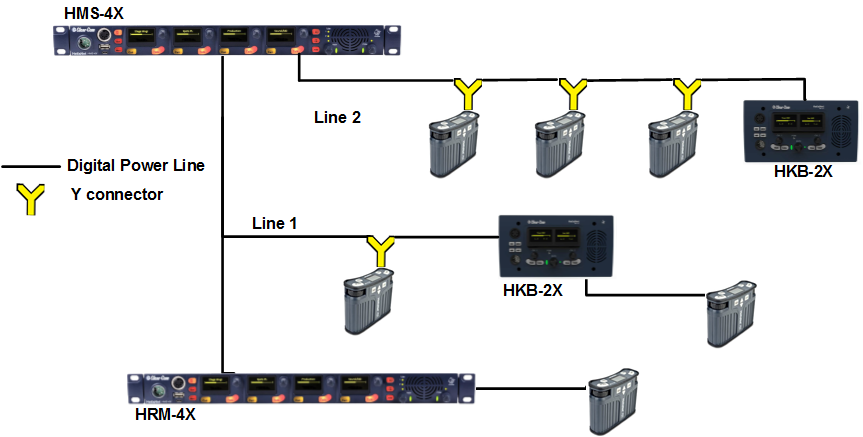

Remote and Speaker Stations have Digital Intercom 3-pin XLR connectors (female and male) and can connect to Main Stations along with beltpacks.

Menu:

A Remote or a Speaker Station draws current equivalent to three beltpacks when the loudspeaker is in use. If the Remote or Speaker Station is locally powered using a power supply, it does not draw current from the digital intercom line.

1. Connect an XLR cable from a Main Station to the Remote or Speaker Station.

2. Power up the Main Station and verify that the Line 1 and Line 2 status LED are green on Main Station.

3. On a Remote Station you can verify that the Line status LED is steady green.
