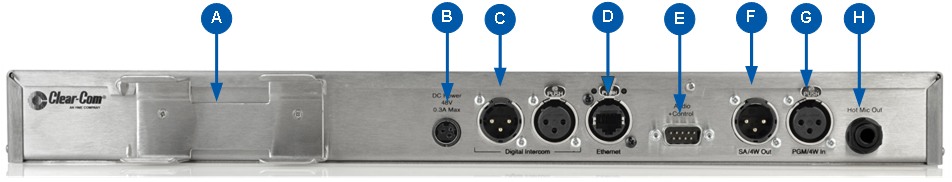

Remote Station rear panel

Key to Remote Station: rear panel

Feature

Description

PSU holder for a separate external AC-DC power supply. The external PSU provides the 48V required and at its input takes 100-240V, 50-60Hz.

Power supply. The power input connector is a low voltage DC connection. It is 48VDC at a max power of 12.95W.

Line 1 (digital Partyline). (3-pin male and female XLR connectors).

Pin

Function

Pin 1

Ground

Pin 2

+30V DC and Audio

Pin 3

-30V DC and Audio

Ethernet/Power Over Ethernet (RJ45 connector)

An LED on the left-hand side of the connector illuminates when the link is working.

An LED on the right-hand side of the connector flashes green when there is network activity.

Pin

Name

Function

1

TX+

Transmit Data+

2

TX-

Transmit Data-

3

RX+

Receive Data+

4

n/c

Not connected

5

n/c

Not connected

6

RX-

Receive Data-

7

n/c

Not connected

8

n/c

Not connected

When connected over PoE, the Remote Station draws 13 Watts from the PoE switch.

Control input/output (DB9 connector)

Pin

Function

Pin 1

Audio out +

Pin 2

Audio in +

Pin 3

GND

Pin 4

Relay NC

Pin 5

Relay NO

Pin 6

Audio out -

Pin 7

Audio in -

Pin 8

Opto

Pin 9

Relay pole

The audio connections in this connector are wired directly to the SA and program connectors. Only one or the other can be used at one time.

SA [Stage Announce] line out (3-pin female XLR).

Pin

Function

Pin 1

Ground

Pin 2

Positive

Pin 3

Negative

Program Input (3-pin m XLR).

Pin

Function

Pin 1

Ground

Pin 2

Positive

Pin 3

Negative

Hot Mic output. This connection is a 1/4-in (0.64 cm) phone jack. It provides an output signal from the selected headset or panel microphone. The Hot Mic output is always live. Audio from the mic is routed through the Hot Mic output even if the mic is inactive (off).

Pin

Function

Tip

Mic

Ring

IFB mute signal

Sleeve

Ground
