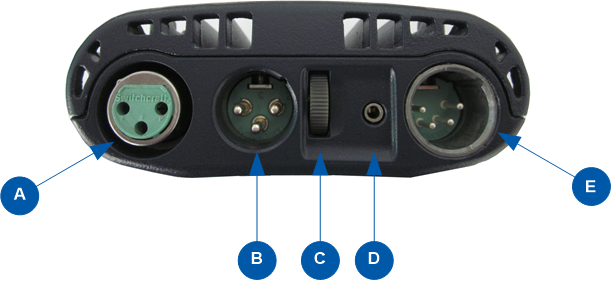

HBP-2X Connectors and Controls (Rear View)
|
Key to HBP-2X Beltpack (Rear view) |
|||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Feature |
Description |
||||||||||||||||||||||
|
|
Line (Digital Partyline) (3-pin female XLR connector).
|
||||||||||||||||||||||
|
|
Line (Digital Partyline) (3-pin male XLR connector). Pass-through for daisy chain connection, see diagram in Topologies.
|
||||||||||||||||||||||
|
|
Program feed (volume) control wheel. Turn to increase or decrease the overall listen volume level of the program feed. To assign programs to a Channel, see Assigning the Program Listen to a Channel |
||||||||||||||||||||||
|
|
2.5 mm TRS headset input.
|
||||||||||||||||||||||
|
|
Headset connector (4-pin male or 5-pin female XLR connector).
|
||||||||||||||||||||||
