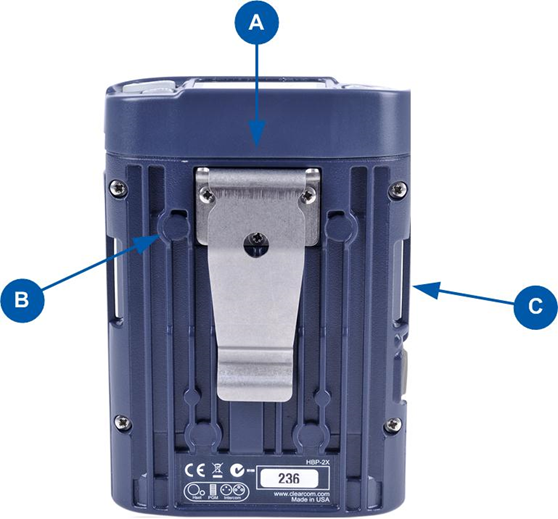

HBP-2X Beltclip, Beltloops and Feet (Base View)
|
Key to HBP-2X Beltpack (Base view) |
|
|---|---|
|
Feature |
Description |
|
|
Beltclip. The beltclip is secured to the unit with three screws, and may be removed, according to your requirements. |
|
|
Feet (positions only). The beltpack can also be placed on a level surface (once the beltclip has been removed). To give the beltpack more grip on the surface, attach the four rubber feet supplied with the beltpack. |
|
|
Beltloops (one either side). Use to thread through a belt or strap for securing the beltpack to a belt or a fixed position. |
