Core Configuration Manager (CCM)

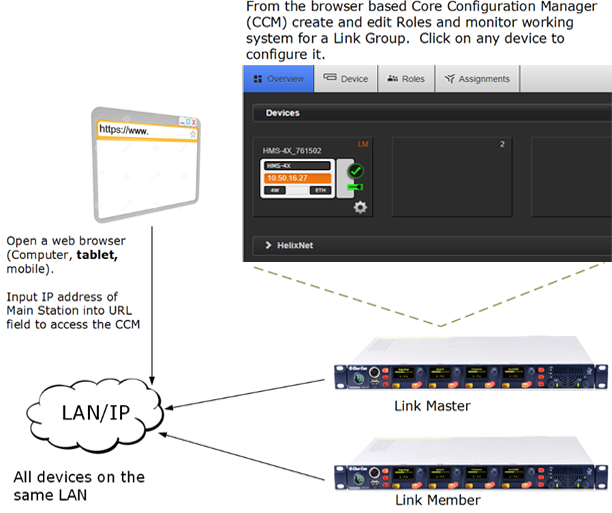

You can configure and control HelixNet units from the web-based Core Configuration Manager. This includes:

Linking Main Stations

Configuring of audio and signalization routing throughout the HelixNet Link-Group:

  • Creating configuration Roles for HelixNet devices (Main Stations, Remote Stations, Speaker Stations and beltpacks)

  • Assigning Roles to devices

  • Saving and changing configuration Roles for devices

System monitoring and control. The CCM provides a real-time visual representation of your working intercom system on the Assignments page.

Access to device control menus can be restricted from the CCM.

Upgrading units.

Note: You can also configure and control HelixNet units using the front panel menu interfaces on each unit. See:
  Configuring and managing the Main Station from front menus
  Configuring and managing the Remote Station from front menus
  Configuring and managing the Speaker Station from front menus
  Configuring and managing the beltpacks from front menus
  Using the HBP-2X Beltpack
  Using the HXII-BP-X4 Beltpack
Note: Some functionality (for example, creating Roles) is only available from the CCM.
