Editing the Station

  1. From the drop-down list of roles, select the role you wish to edit.

  1. Select Station.

You can configure the following:

Setting

Options

Description

Enter station description

Display Brightness

Low

Medium (default)

High

Key Brightness

High/Low. The default setting. Keys are lit bright when active and lit dim when inactive.

High/Off. Keys are lit bright when active and are unlit when inactive.

Low/Off. Keys are lit dim when active and are unlit when inactive.

Off/Off. Keys are unlit, whether or not they are active or inactive.

Screensaver

Channel Name (default)

Hostname

Role Name

Blank

Disabled

Shift Page

Auto Shift

Toggle

Disabled

See table below for details

Menu Access

Enabled (default)

Disabled

Unlatch on Shift

Enabled (default)

Disabled

  1. For each setting, select the option you require.

Shift Pages Key

The intercom speaker station has two display screens with a keyset (set of controls) located next to each screen. Each keyset is dedicated to the control of one of the intercom channels. You can use the Shift button on the front of the station to switch the Keysets between 1-2 and 3-4.

You can configure the behavior of the shift pages key to best suit your use of the station.

Shift Option Behavior
Auto Shift

The user can toggle between the 2 pages using the shift button.

Keysets will automatically shift if a call is received on the lower page.



Toggle

The user can toggle between the 2 pages using the shift button.



Disabled

The shift button is disabled, the first 2 Keysets are fixed.

Channels may be assigned to the second page but it will be impossible to adjust their respective volumes, see call indications or press the talk key.



Editing the Headset

See Editing the Headset.

Editing the Microphone

See Editing the Microphone.

Editing the Loudspeaker

See Editing the Loudspeaker.

Editing the Logic Input Options (HKB-4X-7X Stations only)

The HKB Station is available in a special configuration with a 7-pin XLR headset connector. This is used with two assignable GPI/Push-to-talk (PTT) buttons that enable you to configure various buttons press actions from a switch wired to the GPI/PTT.

More than one button press can be configured on each GPI/PTT. There are three configurable actions available: PPT1, PPT2 and PTT 1 & 2 (both buttons pushed at the same time).

The four local talk and call keys, the headset (Hset) key and the microphone (Mic) key can be assigned to any GPI/PTT.

The GPI/PTTs can be setup in the CCM or from the front panel menu system.

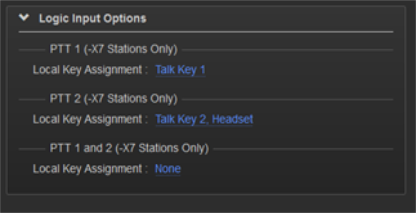

To configure Logic Input Options in the CCM navigate to: Roles > Speaker Station > Select Role > Logic Input Options.

After clicking on a blue label, a selection dialog box will open to allow the assignment selection:

Note: The keys in this screen toggle on and off on a mouse click.

Please contact your Clear-Com representative for further information about availability of the HKB-2X-X7.
