HMS-4X Main Station: Rear Panel

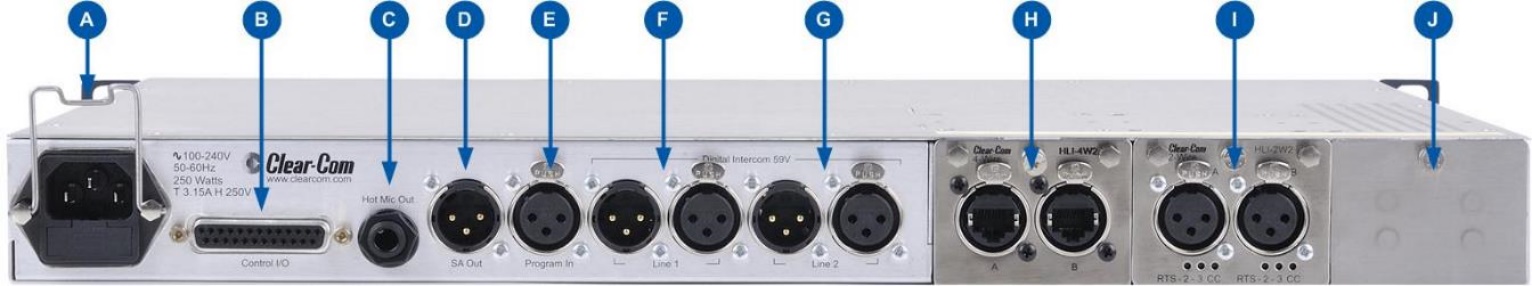

Key to Main Station: rear panel |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Feature |
Description |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power supply with metal cable clip. The power supply operates at 100 - 240 VAC / 50-60Hz / 250 watts / T 3.15A H 250 V. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Control I/O (25 way female D-type). Use to connect up to 4 relay control outputs and 4 optically isolated control inputs, see Configuring the Control I/O)
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Hot Mic output. This connection is a 1/4-in (0.64 cm) phone jack. It provides an output signal from the selected headset or panel microphone. The Hot Mic output is always live. Audio from the mic is routed through the Hot Mic output even if the mic is inactive (off).
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SA [Stage Announce] line out (3-pin male XLR).
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Program Input (3-pin female XLR).
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Line 1 (digital Partyline). (3-pin male and female XLR connectors).
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Line 2 (digital Partyline). (3-pin male and female XLR connectors).
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Slots for optional interface modules. H – Slot 1 I – Slot 2 J – Slot 3 For more information, see HMS-4X Main Station rear panel: Interface modules |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Warning: Only connect power supply to earthed supply sockets. Ensure that the power supply is routed to avoid sharp bends, hot surfaces, pinches and abrasion.
For more safety guidance, see the Safety Instructions at the front of this guide.
Note: | The HMS-4X Main Station does not have a power switch, button or key. The system powers up when you connect the power supply. |
