S-Mount Rear Panel
The S-Mount is an optional unit that allows you to mount the Speaker Station on a desk or wall.
| Note: | There are cables pre-installed in the S-Mount that connect to the Speaker Station terminals. |
|

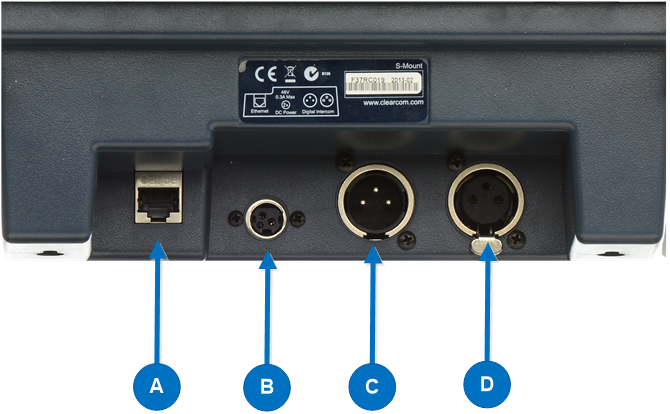

Key to S-Mount rear panel keyset |
||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Feature |
Description |
|||||||||||||||||||||||||||
|
|
Ethernet/Power over Ethernet connection (RJ45).
|
|||||||||||||||||||||||||||
|
|
Power connection. The power input connector is a low voltage DC connection. It is 48VDC at a max power of 12.95W. |
|||||||||||||||||||||||||||
|
|
Line 1 Digital Partyline. (3-pin male XLR connector).
Table 1‑26 Line 1 pinout |
|||||||||||||||||||||||||||
|
|
Line 2 Digital Partyline. (3-pin female XLR connector).
|
|||||||||||||||||||||||||||
