Cable Connections
The diagrams on the following pages reference the following labels and notes.
|
Label |
Manufacturer |
Part Number |
Description |
|---|---|---|---|
|
|
Clear-Com |
HMS-4X |
HelixNet Main Station |
|
|
Belden |
8760,9207 Or 9463F |
18 or 20 AWG twisted pair cable terminated with 3-pin XLR |
|
|
Middle Atlantic (or equivalent) |
CH-1 |
1 RU shielded chassis |
|
|
Neutrik (or equivalent) |
NC3FD-L-B-1 |
3 pole female chassis mount |
|
|
Neutrik (or equivalent) |
NC3MD-L-B-1 |
3 pole male chassis mount |
|
|
Neutrik (or equivalent) |
NA3MDF |
3 PIN XLR M-F FEED THRU ADAPTER |
|
|
Belden (or existing cabling) |
1351A or 1533P |
24 AWG, shielded cat 6 cabling |
|
|
Belden |
8760,9207 or 9463F |
XLR3 M-F patch cord |
|
|
Belden |
8760,9207 or 9463F |
18 or 20 AWG twisted pair cable |
|
Label |
Note |
|---|---|
|
|
Wire in accordance with Table 245 |
|
|
Equipment rack, breakout box chassis and patch panel must be connected to safety earth |
|
|
Connect up to 32 wall plate locations to patch panel with individual CAT 5 cables |
|
|
If multiple wall plates are co-located at a remote location, daisy chain their wiring at the remote location and connect a single CAT 5 cable from the remote location back to the patch panel |
|
|
Use short length, high quality XLR patch cords with shielded connectors |
|
|
Do not patch between separate power lines |
|
|

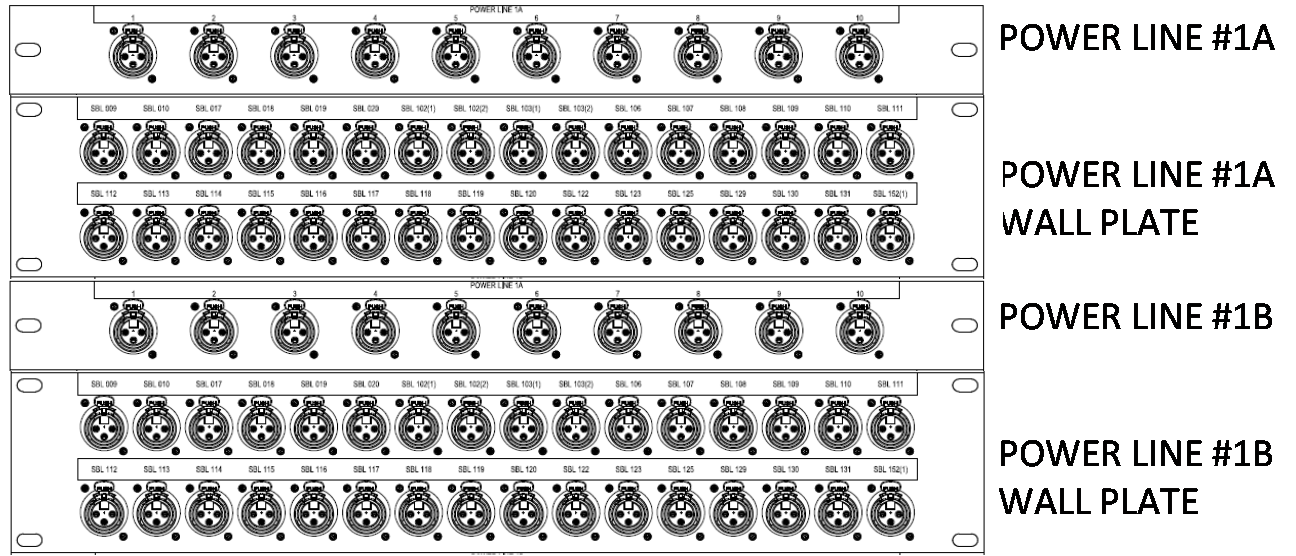

Assemble item 6 to panel with male connectors to front |
