Cabling Topologies - Digital Powerline Device

Powerline cabling allows system components to be wired in daisy chain, star, or ring topologies using standard shielded 3-pin XLR cabling. Splitting and combining can be achieved using passive splitters such as Clear-Com's SP-2 and SP-3 splitter cables.

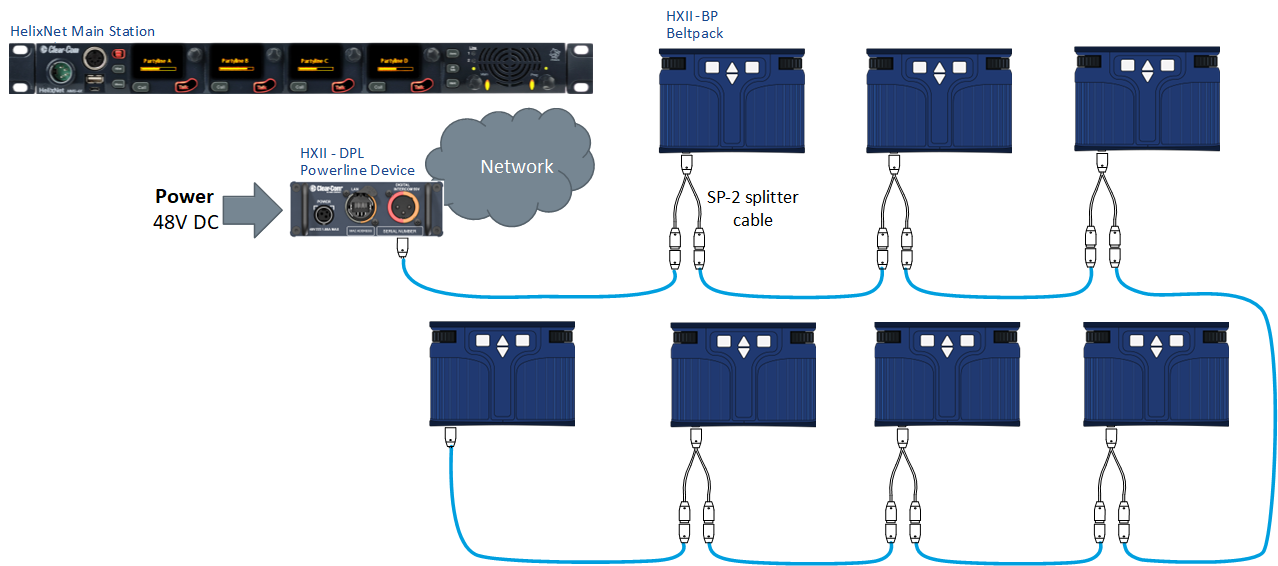

Daisy chain topology

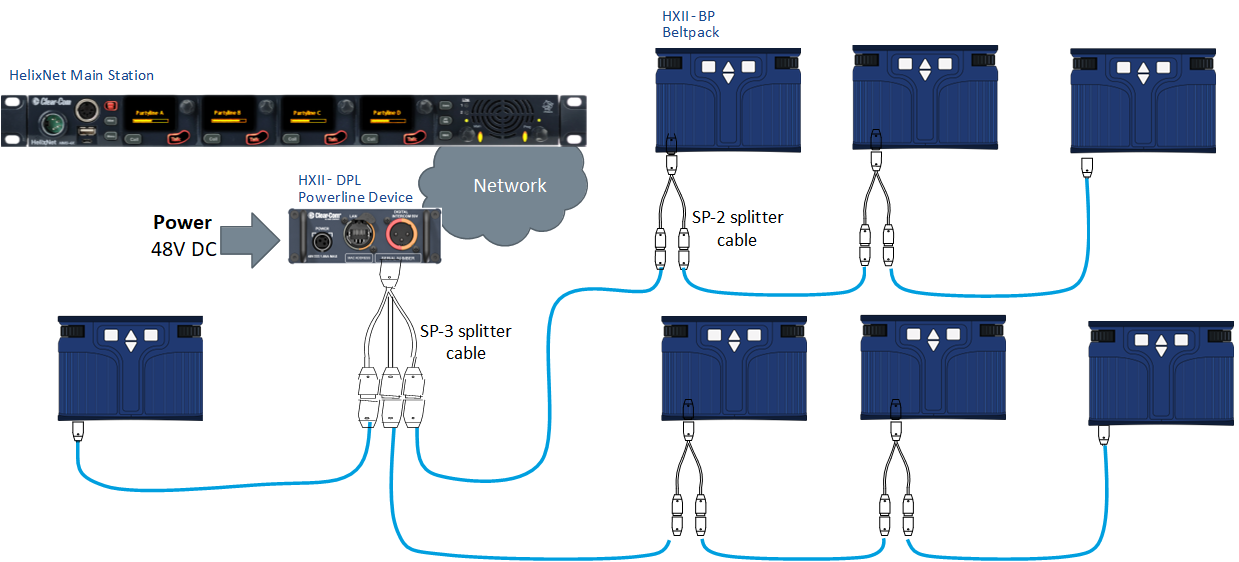

Star topology

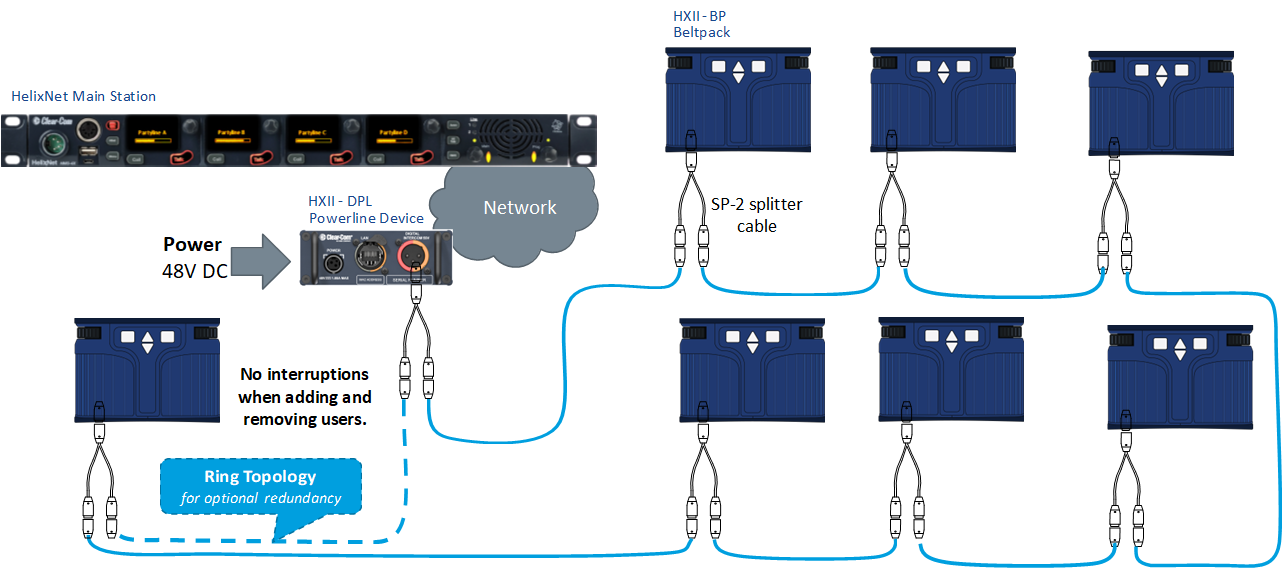

Ring topology with cabling redundancy

Note:

Ring topology redundant connections must be maintained within the same Powerline device and not connected to other Powerline devices.

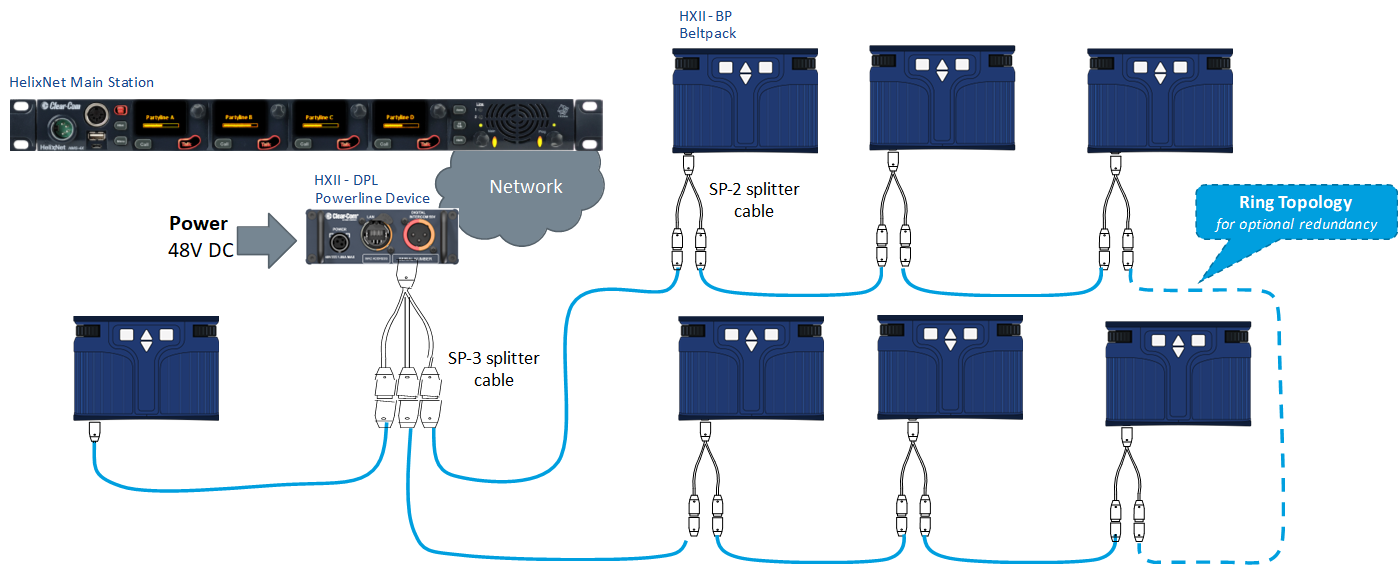

Ring and star topology
