Ports
Settings vary according to port type.

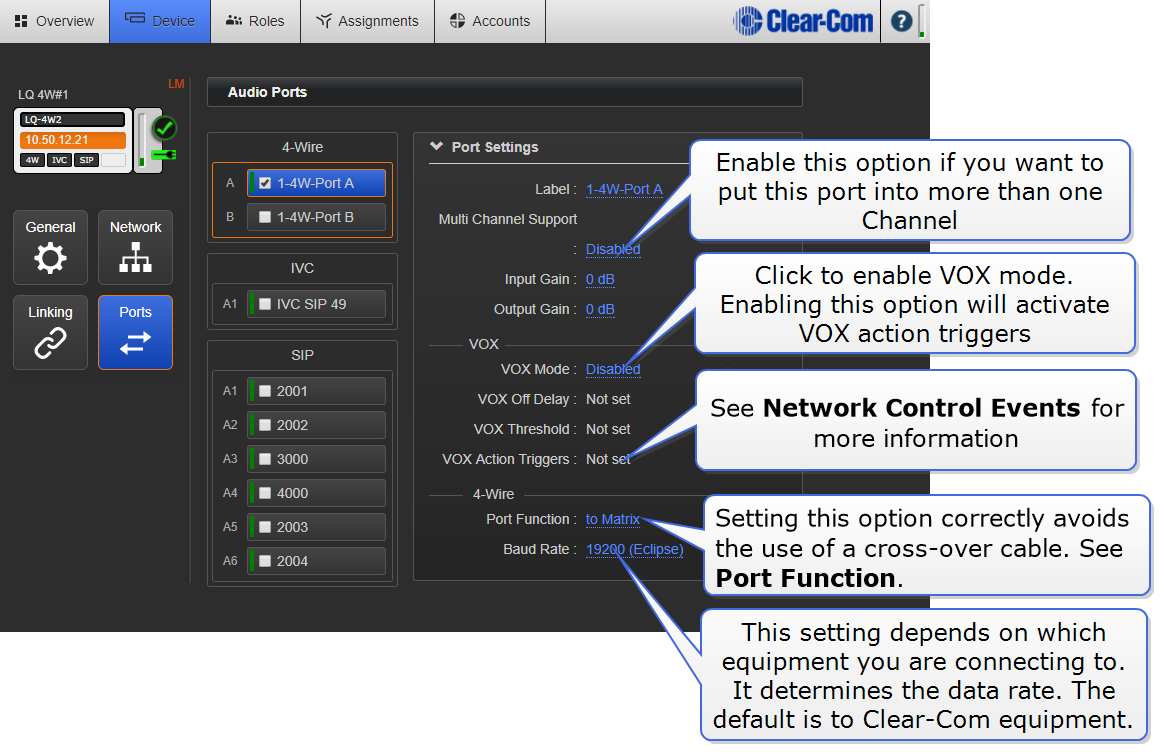

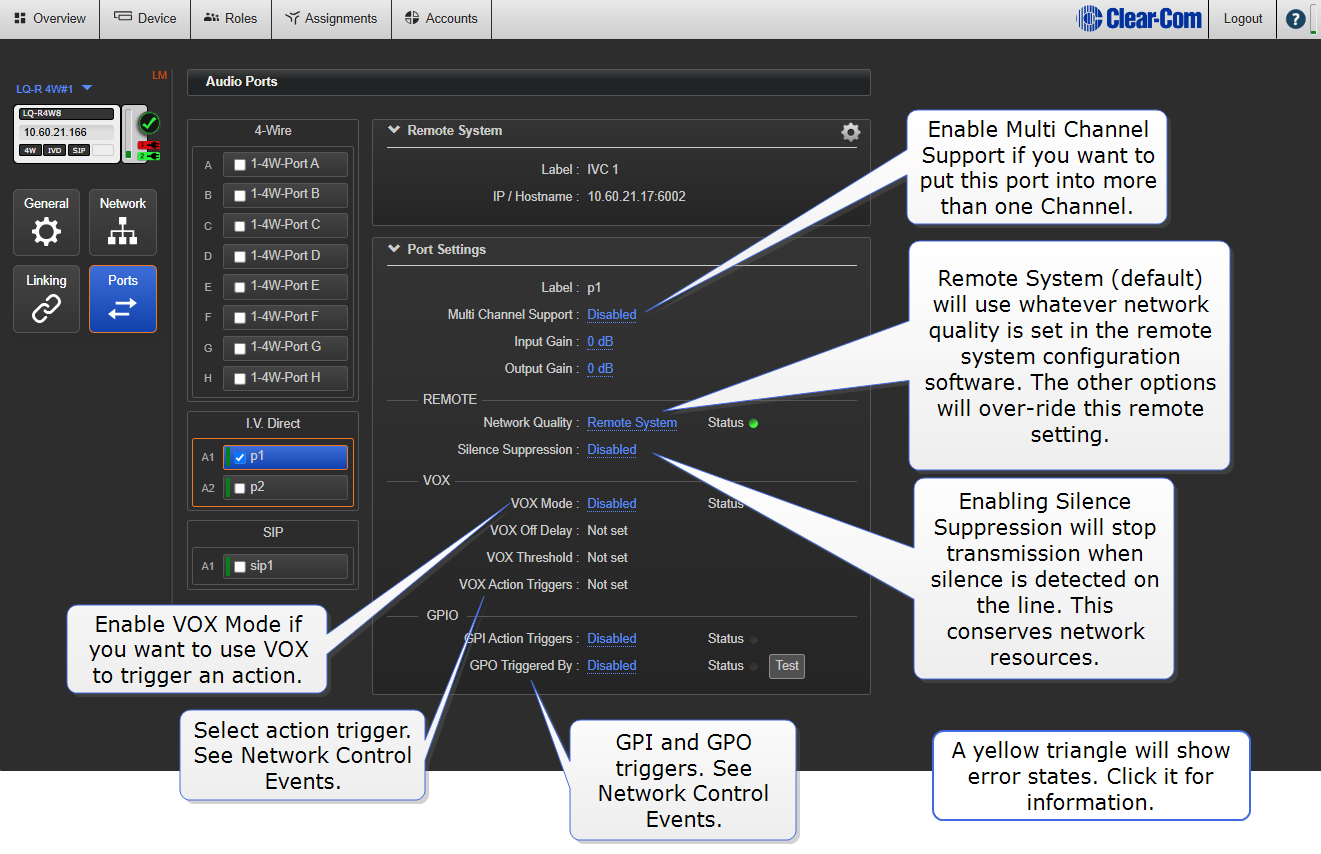

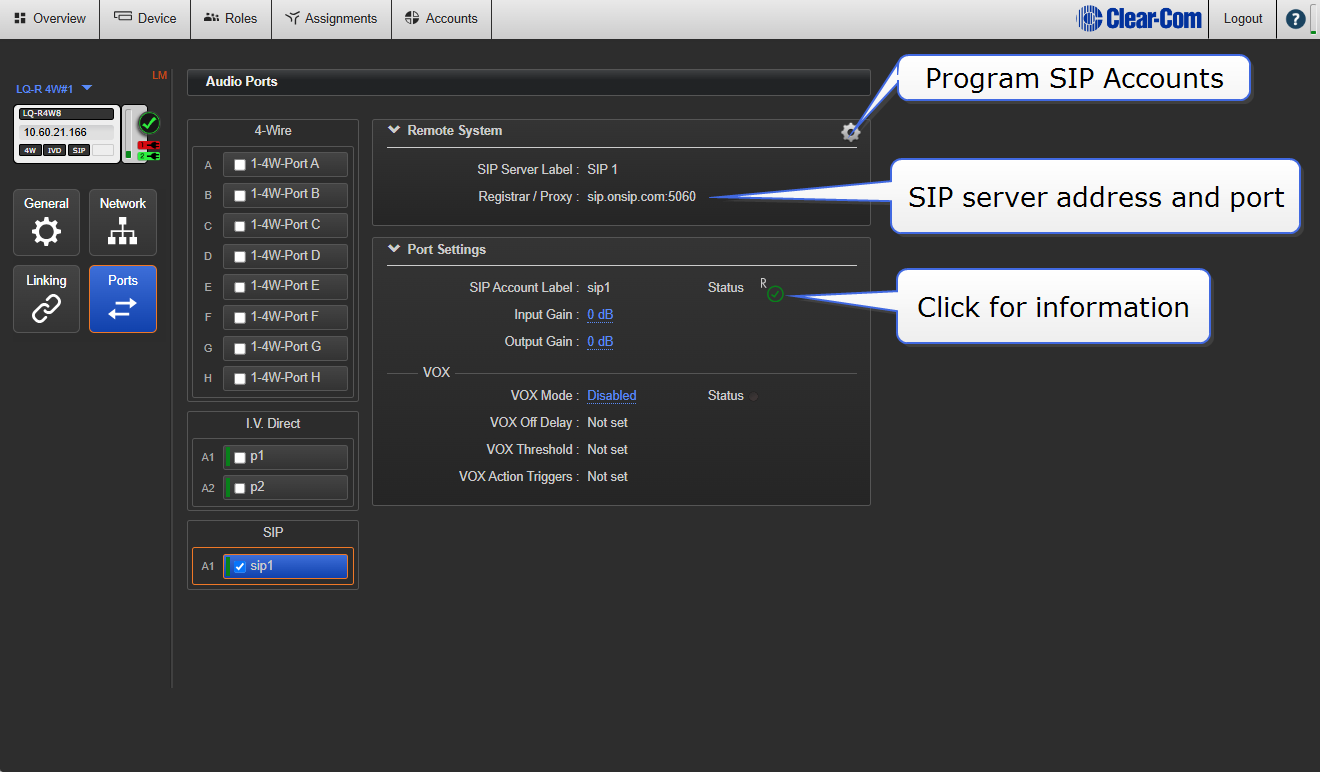

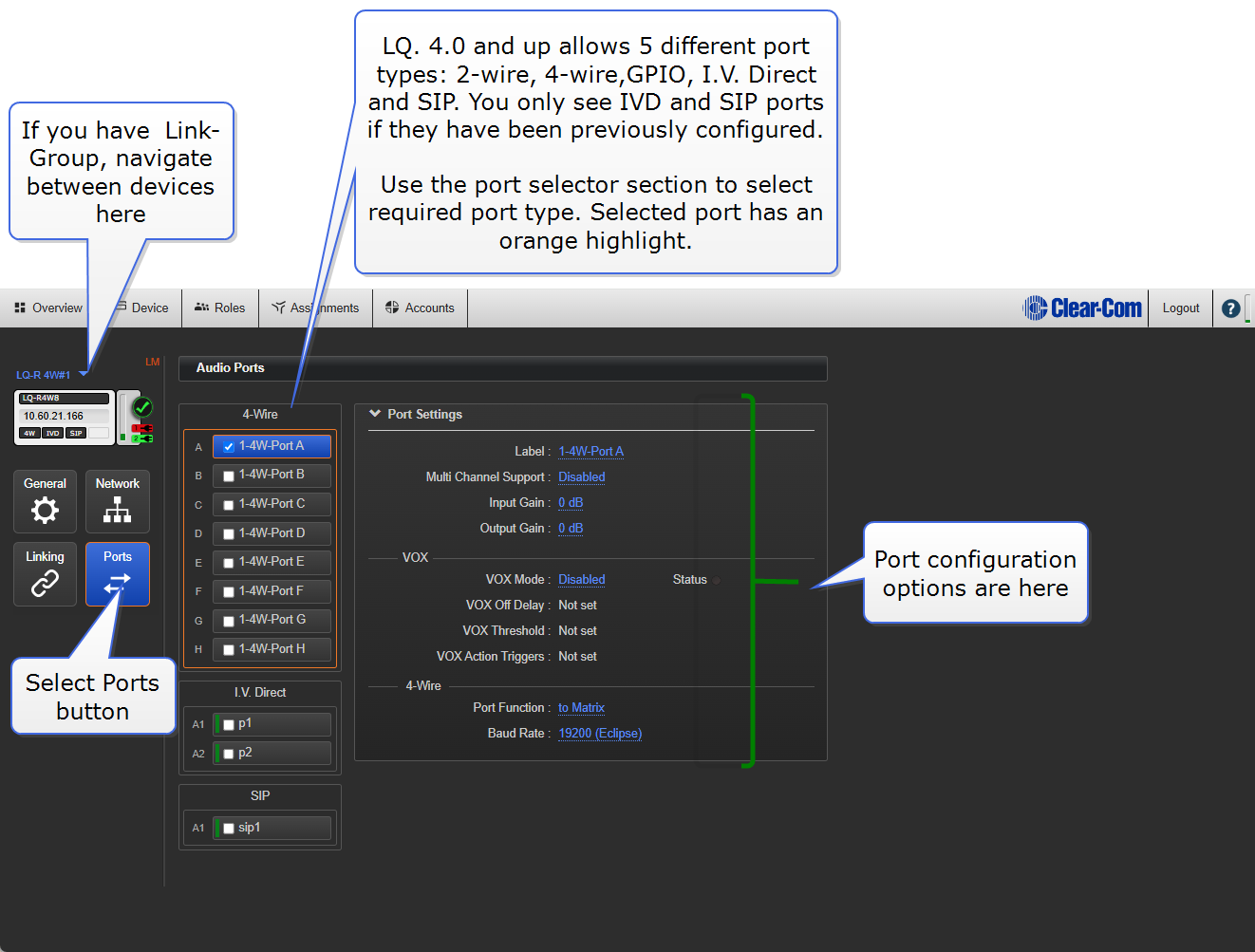

LQ 4.0 and above allows five different port types: 2-wire, 4-wire, GPIO, I.V. Direct/IVC and SIP. You will see the port types available to your system in this page. Use the Port Selector to select ports for programing. Use the drop-down device selector for moving between different devices in a Link-Group.
In this page you can set port variables such as input gain (volume) and VOX detection. You can name the port here. More than one port can be selected for configuration at one time.

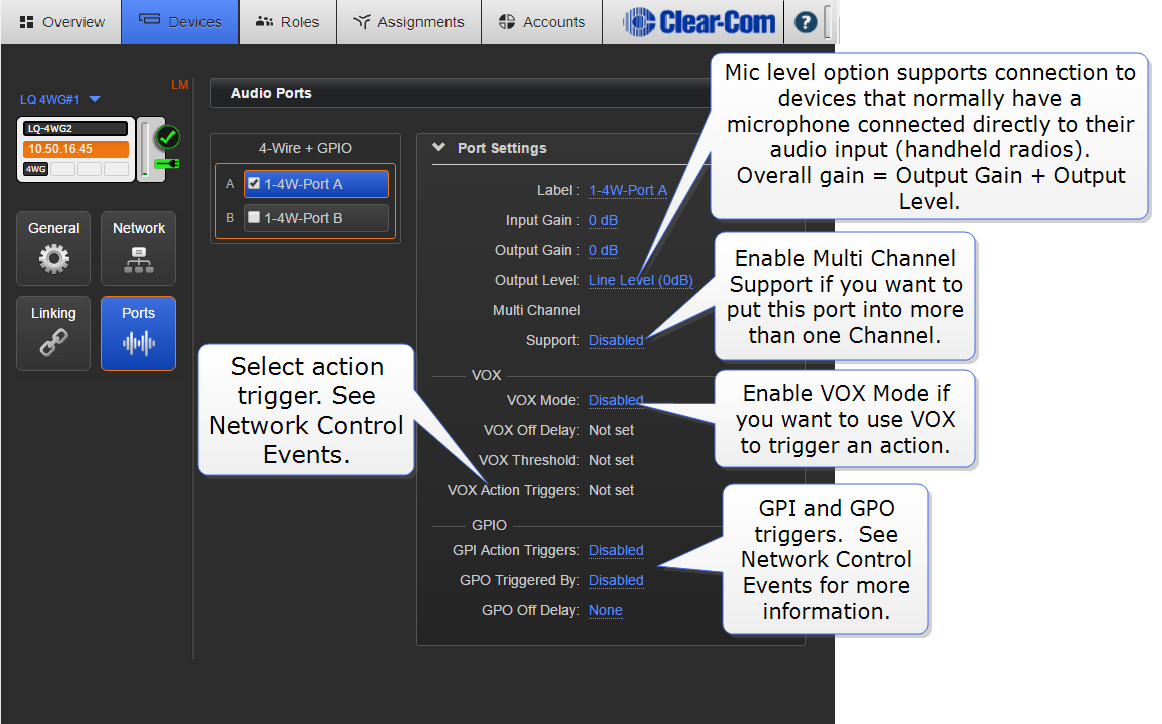

You can also program the GPIO triggers for your system, allowing relays to be sent to radios or other remote and third party equipment.
In LQ 3.0 and above, it is possible to put ports in more than one Channel.
VOX settings are available on all LQ port types.

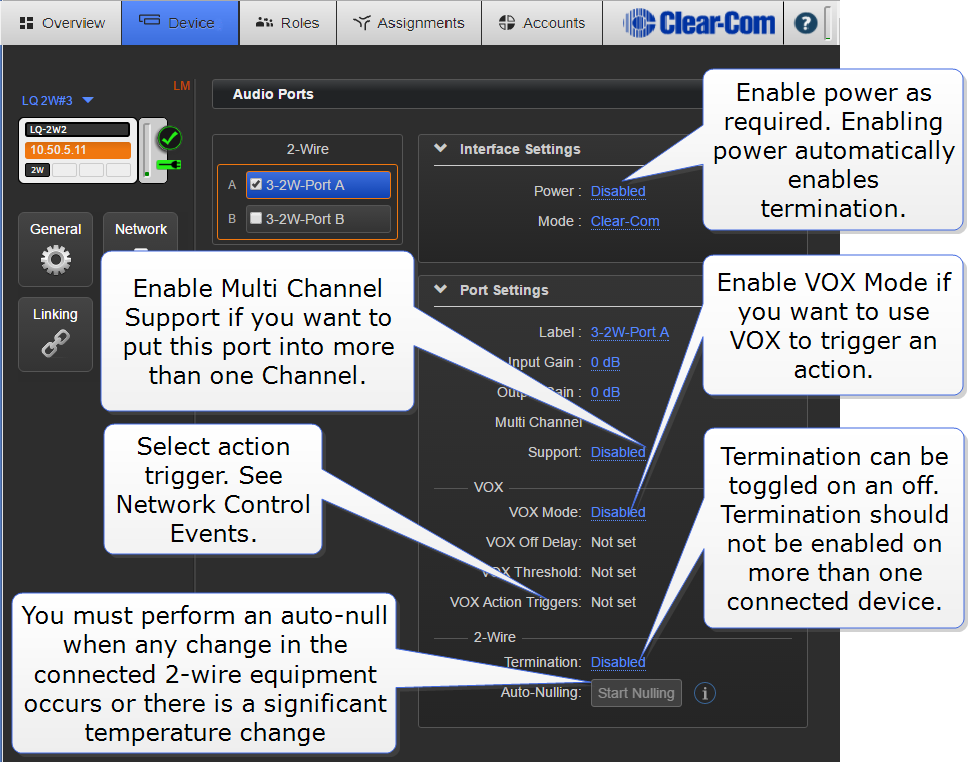

2-Wire specific settings
