How Do I Get a Virtual Client to Connect to an LQ Device via 3G/LTE/4G/Wifi?

There is one connection method for a virtual client to an LQ unit, regardless of the connection medium.

Note: The device must have vitual client license or licenses installed. See Licensing for more information.

Virtual client accounts must be set up in the Accounts page of the LQ CCM.

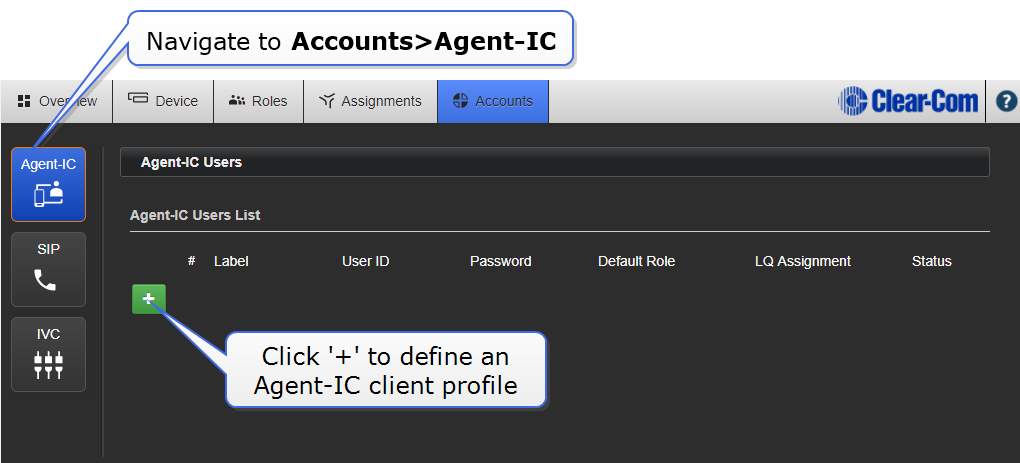

Connect Agent-IC to LQ #1

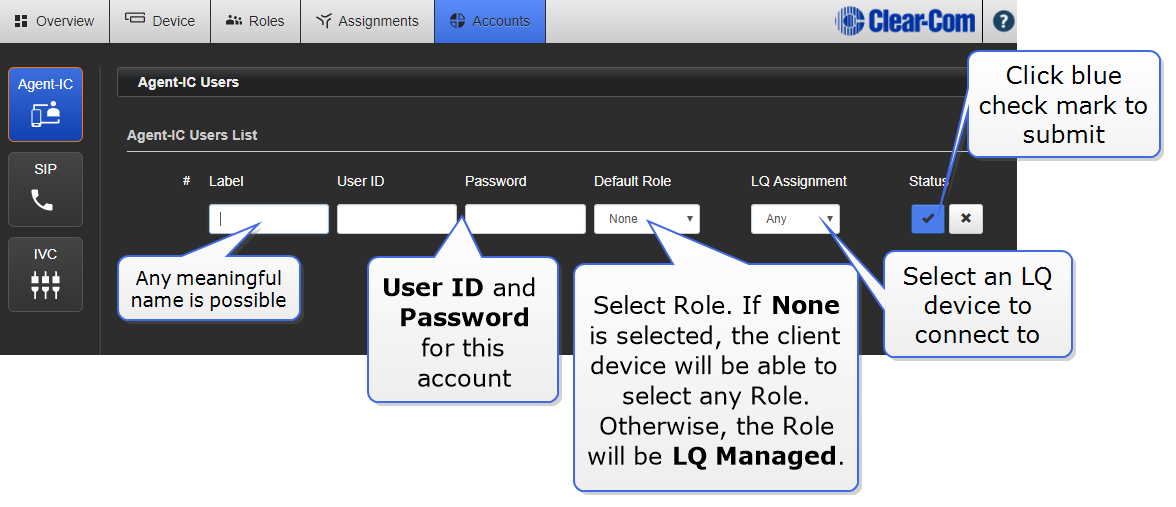

Connect Agent-IC to LQ #2

From the mobile client, input:

  • LQ device IP address
  • Login credentials (User ID and Password) in Settings.

Chose an LQ Profile (an EHX profile connects to an EHX system).

Press Start to connect the client to the LQ.

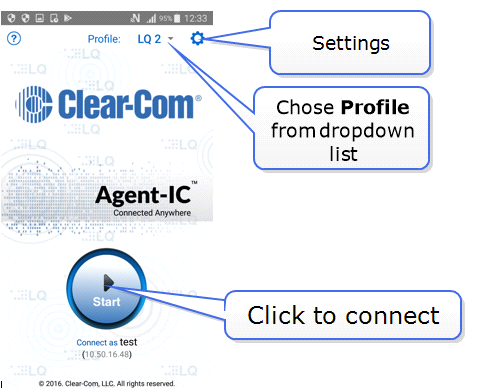

Connect Agent-IC to LQ #3

Note: When connecting a virtual client to HelixNet via LQ, due to a heavier codec (WavPack), the data rate will increase. This may cause problems with the virtual client in HelixNet Channels, particularly when using the slower 3G bandwidth connections.
