Multi-Channel Ports
It is possible to assign one port to many Channels. There is no limit on the amount of Channels a port can be put into, but the rules for device resource usage apply. When the unit is reaching the limits of its capacity, the user interface will stop you from assigning more ports.
When do I use multi-Channel ports?
An example of when to use multi-Channel ports might be if you have a program feed or stage announce that should be heard by several teams or groups.

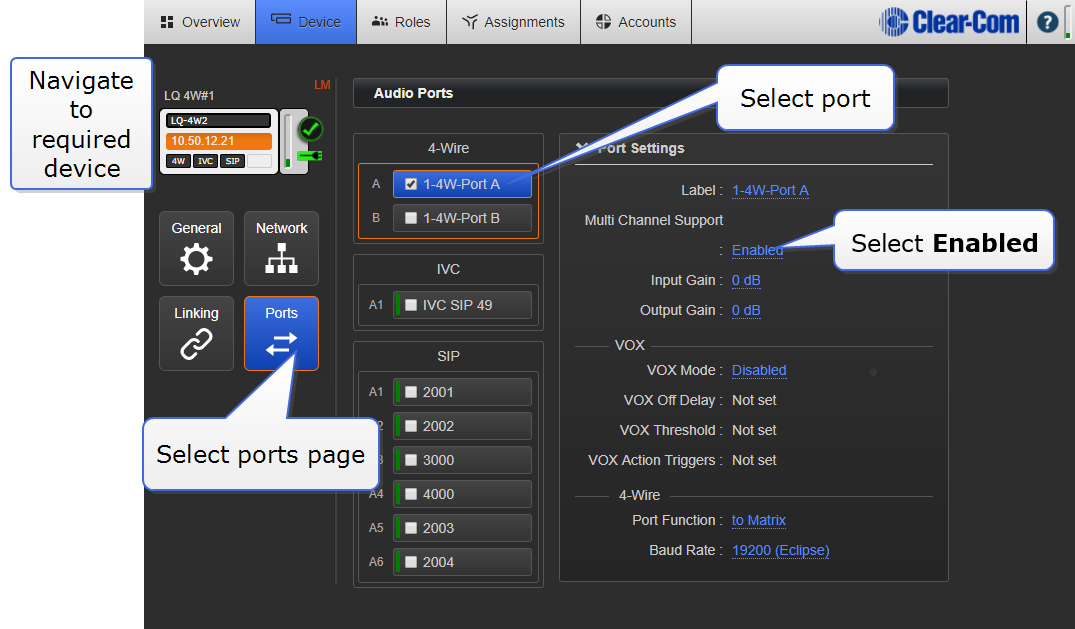

Once enabled, multi-Channel ports are available in the Assignments page, ready to be assigned to more than one Channel.
| Note:
|
If the port has already been put into a Channel, it will be unassigned from the Channel when you enable multi-Channel support. |
For more information on how to put ports in Channels see Assignments .
| Note:
|
Multi-Channel ports will not be placed in a local audio mix, they will be transported as a single audio stream. You can use the Resource Meter as a guideline for device capacity. |
