Connecting an Eclipse 4-Wire to an Encore Device Using LQ

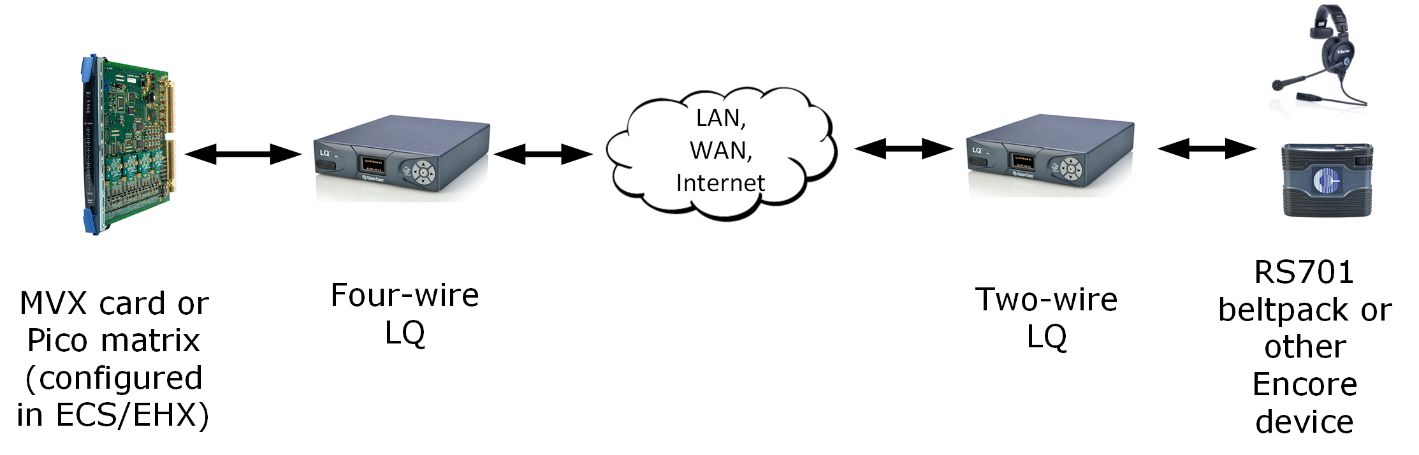

Pico to Encore using LQ

When setting up this connection, care must be taken to configure the port in the EHX software correctly. This is because, in this case, the port must be declared as a CCI-22 device as the port detection device on the LQ will recognise it as such.

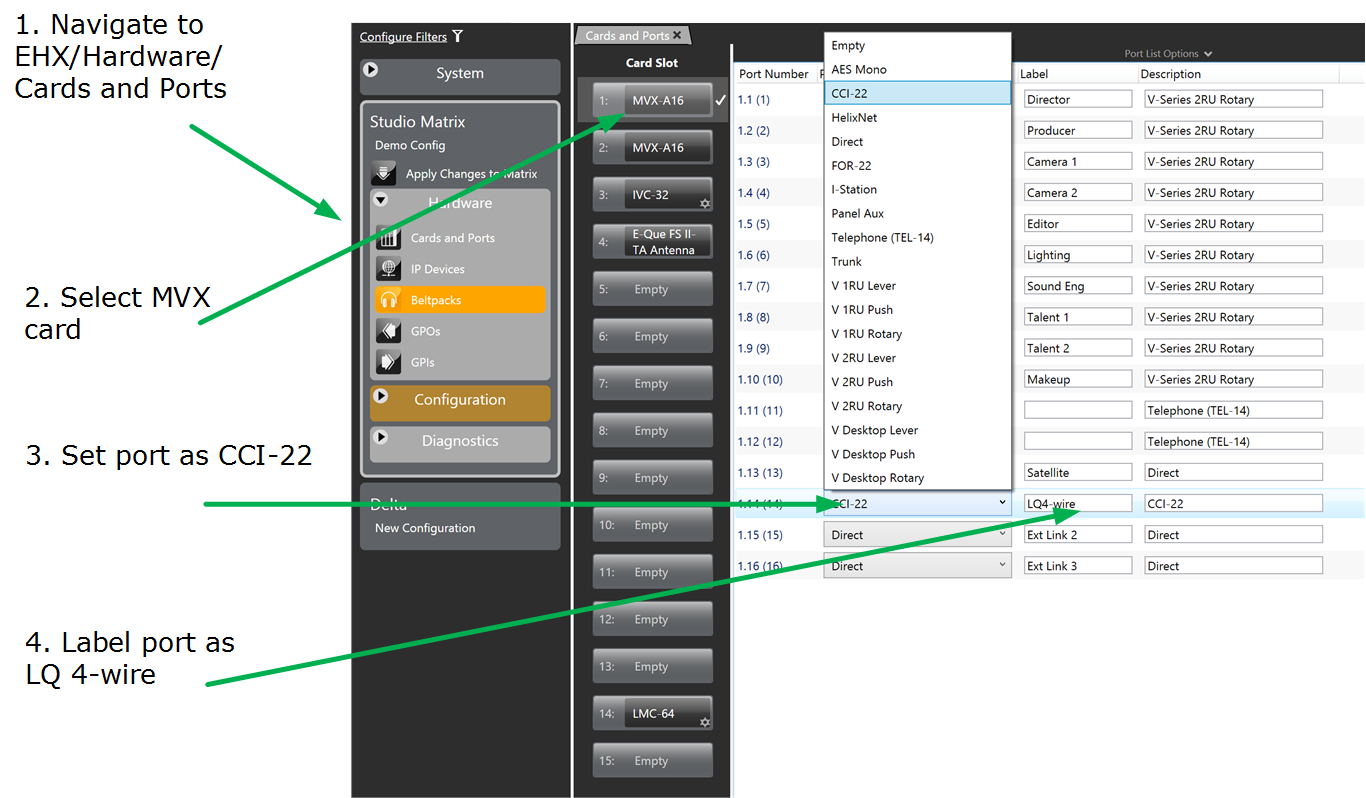

  1. From the EHX software, navigate to EHX > System > Cards and Ports.
  2. Select the MVX card port.
  3. Select a CCI-22 device from the list.
  4. It is advisable to label the port as an LQ 4-wire device to avoid confusion.

Show me: Configure EHX software

Note: The connection between the MVX or PiCo and the LQ device is a 4-wire connection, even though it is declared as a 2-wire connection.

For more information on port function, see 5.16 Port Function in the EHX Software User Guide .
