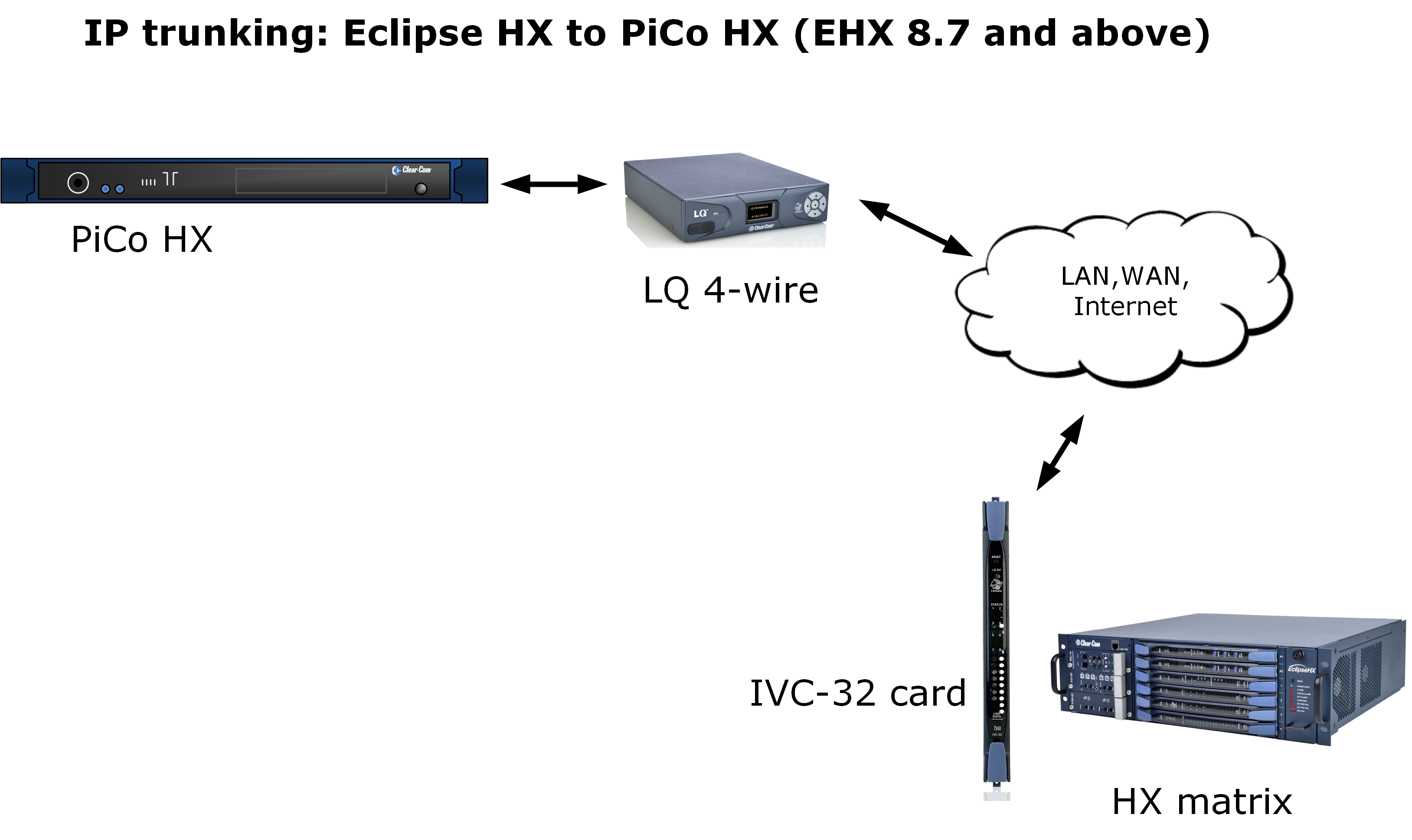

PiCo HX Trunk to HX Matrix (Eclipse HX 8.7 and Above)

For this set up it is necessary to configure both EHX and the Core Configuration Manager (CCM).

1. In the EHX software, declare the PiCo port that connects to the LQ as a trunk.
2. In the EHX software, declare the IVC-32 card port on the HX matrix as an 'LQ trunk'.
3. Generate an IVC-32 port in the Core Configuration Manager (CCM) of the LQ device. See for how to generate IVC-32 ports in LQ.
4. Connect 1:1 CAT5 cables between the PiCo and the LQ unit.
5. Navigate to Assignments in the CCM, select and allocate a Channel. It is advisable to name this Channel 'Trunking'. Put both the LQ IVC port and the LQ 4-wire port into the Trunking Channel together. This generates a connection between the two ports

Note:

Don’t assign other ports to this Trunking Channel as this will cause confusing transmission.
