How do I set up LQ to work with RTS equipment?

To use RTS equipment you must set the Mode setting to RTS in the CCM:

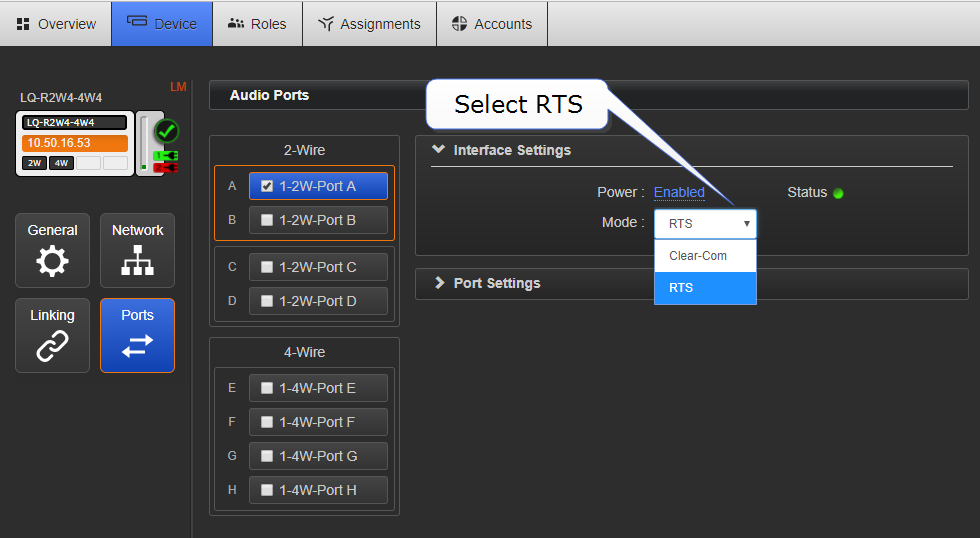

  1. Navigate to Device>Ports>Interface Settings>Mode for the required device.
  2. Select RTS.

Click image to enlarge/minimize

Port A will be channel 1 of the RTS

Port B will be channel 2 of the RTS

The two XLRs (pair) work in parallel, and the RTS device can be connected to either XLR.
