Configure Redundant Network Connections

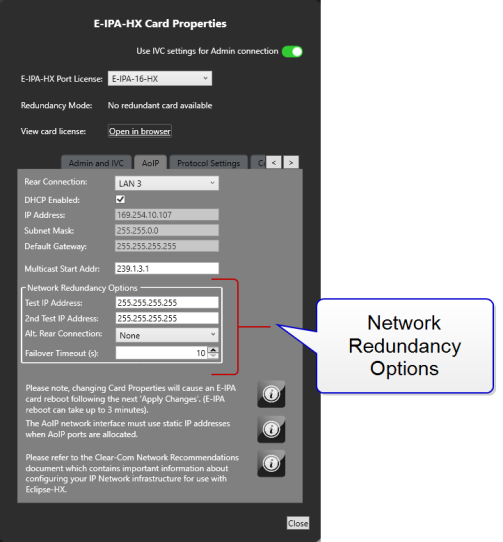

Navigate to Matrix > Hardware > Cards and Ports > E-IPA card > right click on the E-IPA card and select Card Properties. Set the Network Redundancy Options:

1. Set the Test IP Address and 2nd Test IP Address.

2. Select the Alt Rear Connection (the LAN port that will carry the redundant network)

3. Set the Failover Timeout (5 - 300 seconds).

4. Apply map to matrix.

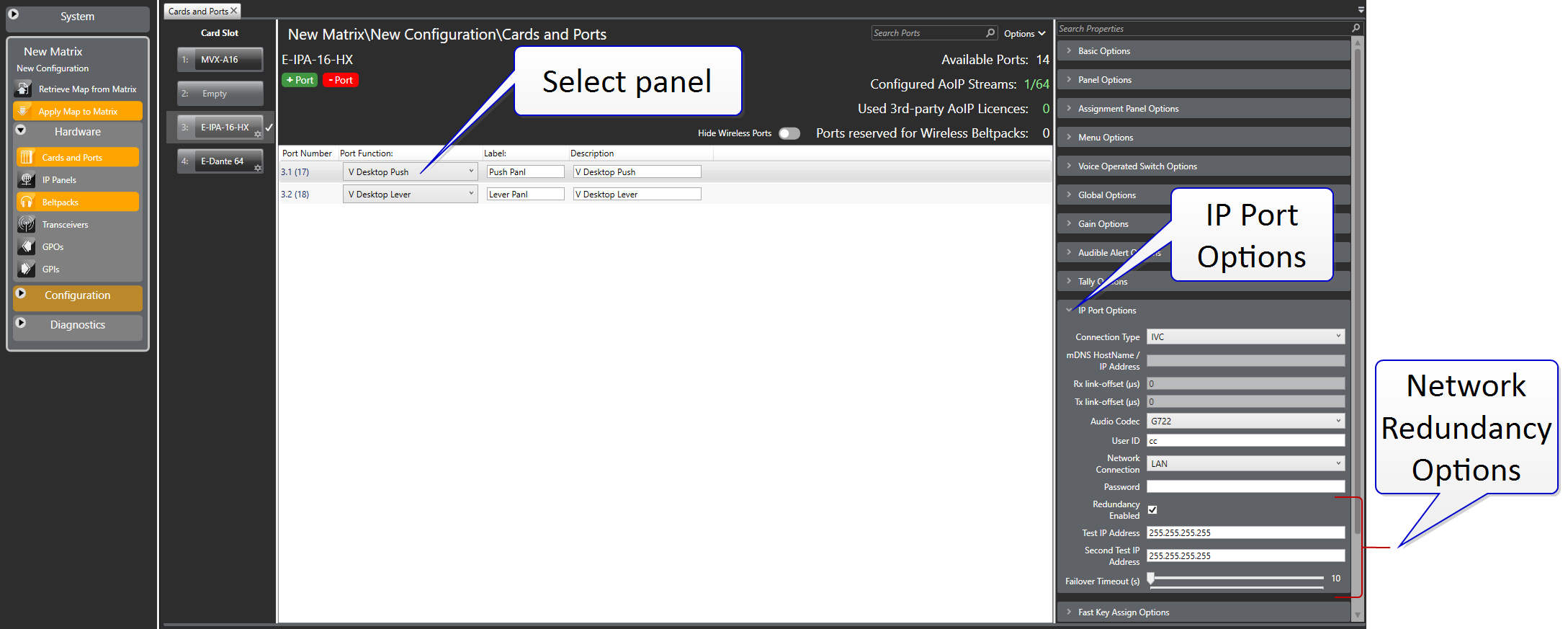

Navigate to Matrix > Hardware > Cards and Ports > select panel > Panel Properties > IP Port Options and set the following:

1. Click the to enable the Redundancy Enabled checkbox.

2. Set the Test IP Address and 2nd Test IP Address.

3. Set the Failover Timeout (10 - 300 seconds).

4. Apply map to matrix.

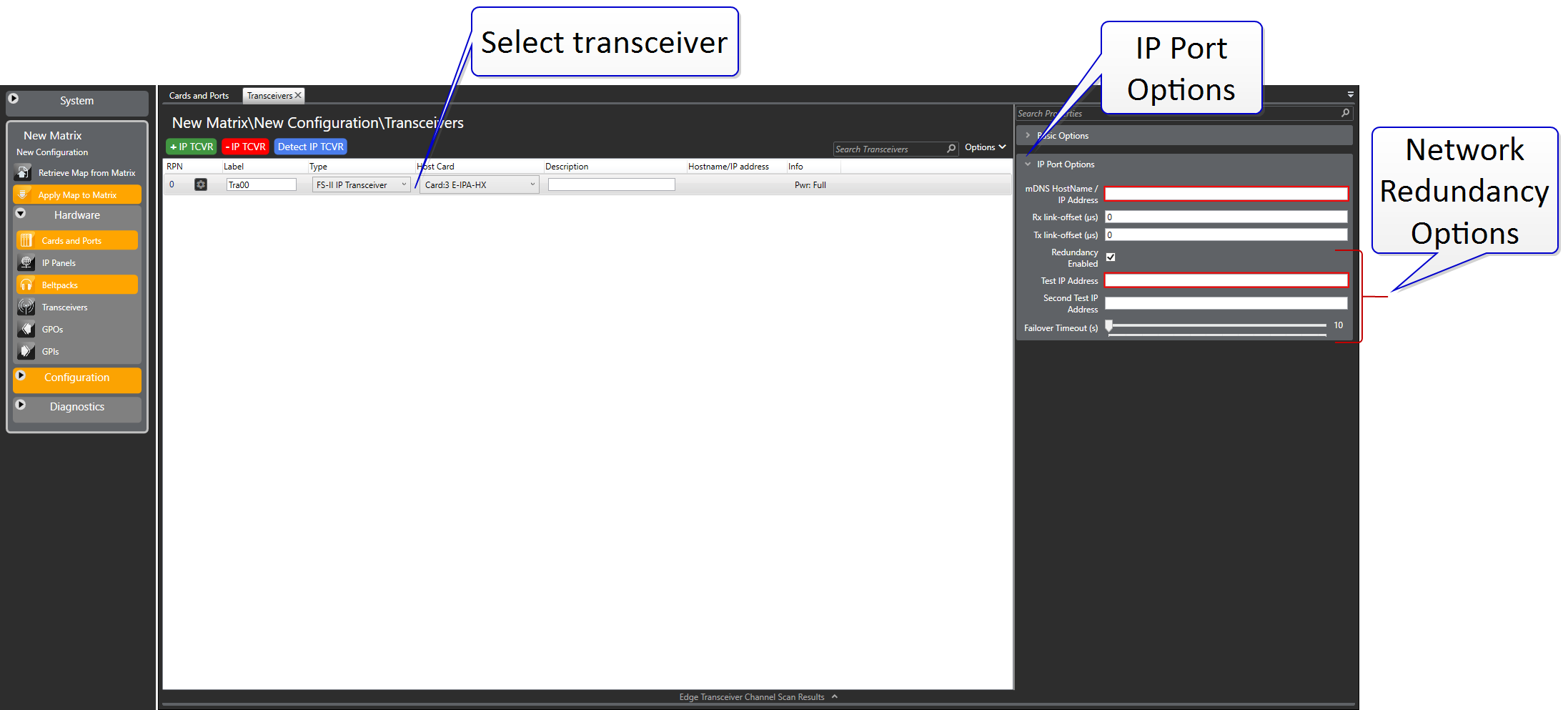

Navigate to Matrix > Hardware > Transceivers > select transceiver > Properties > IP Port Options and set the following:

1. Click the to enable the Redundancy Enabled checkbox.

2. Set the Test IP Address.

3. Set the Failover Timeout (5 - 300 seconds).

4. Apply map to matrix.
