Headset autodetect

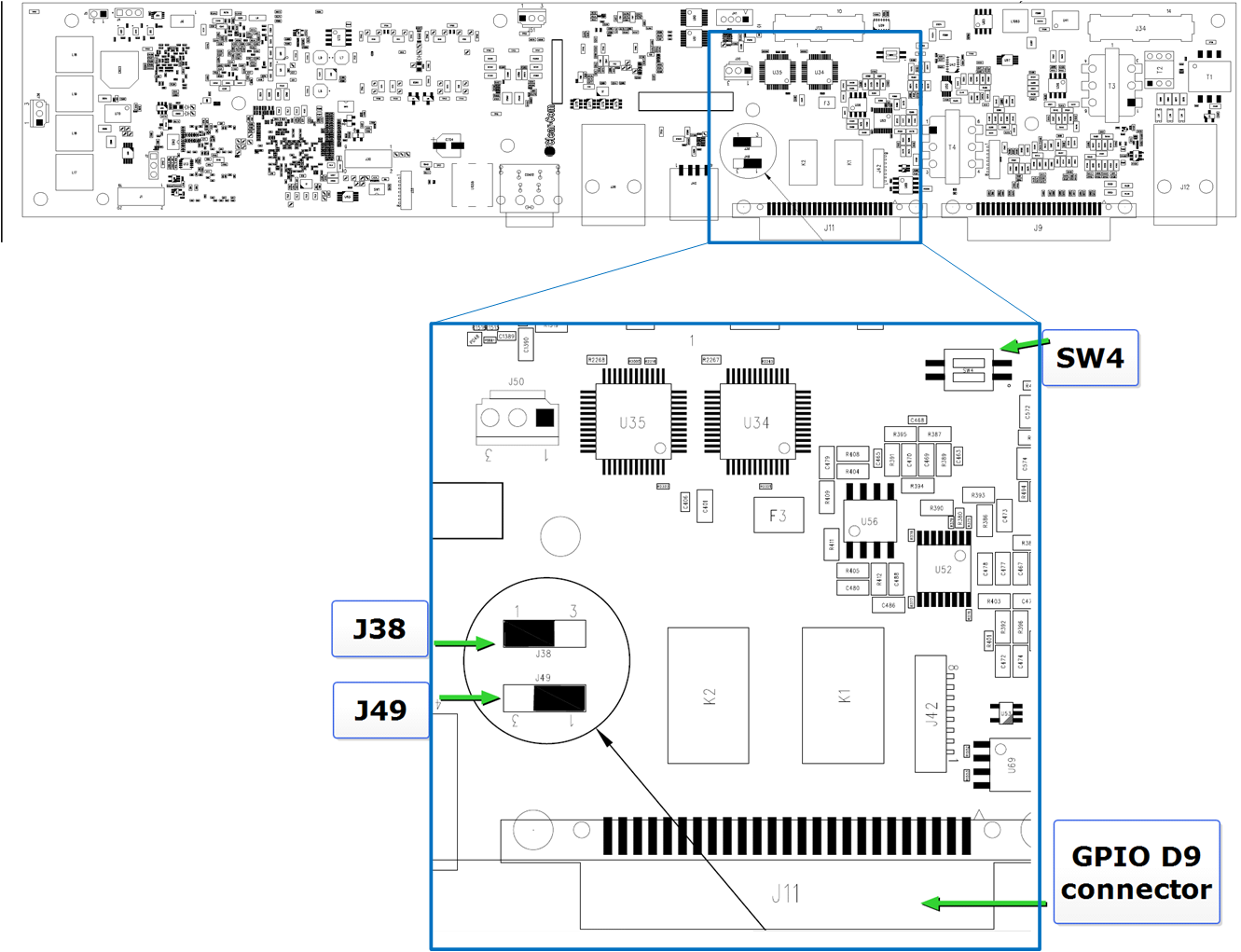

V-Series panels can autodetect headsets 1 and 2 and automatically enable them.  Headset auto detect can be set to enabled or disabled via a DIP switch (SW4) on the main board.  As headset insertion can cause a noise on the panel some users may wish to disable automatic headset detect and use the front panel button instead to enable and disable the headsets.

To access the DIP switch the rear cover must be removed from the panel.



Headset 1 autodetect is controlled by switch 1 on SW2 and headset 2 autodetect is controlled by switch 2 on SW4.

To enable headset auto detect for a headset set the appropriate switch to ON (towards the front of the panel).

To disable headset auto detect set the appropriate switch to OFF (towards the rear of the panel).

Note:

To see details of dip switches J38 and J49 please see Appendix: Iris panel dip switches and D25 pinouts
