IP ADDRESS menu

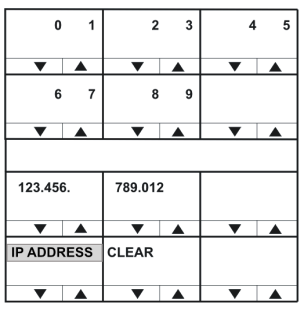

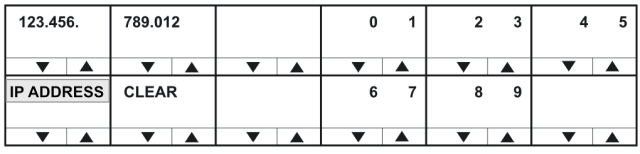

Use the CLEAR key to clear the current IP address for the panel, and then enter the new IP address.
In lever key and pushbutton panels, use the up / down buttons to select the digits. For rotary panels, press the rotary control to select the left digit and the talk button to select the right digit.
Each time a digit is selected the cursor will advance to the next digit automatically. Pressing the lever key down or the pushbutton or the rotary control will step back to the previous digit.
When the IP address for the panel has been entered exit the menu using the LOGIN PORT key or talk button.
Assigning IP addresses
It is important to ensure that the panel IP address does not clash with any other IP address on the network (another device is using the same IP address).If there is an IP address clash, the panel may repeatedly lose the connection with the IVC-32 card, and may also cause the IVC-32 card to crash.
Note: | Clear-Com recommends that DHCP is used wherever possible to automatically assign IP addresses rather than assigning IP addresses manually in order to reduce the risk of an address clash. For more information, see DHCP menu. |
