Keysets

Each V-Series Iris panel has 12, 24 or 32 keysets. The keysets enable you to control and view the status of audio associated with the keyset.

For example, you can activate audio, adjust audio volume levels and view the color OLEDs to easily identify what kind of audio is present.

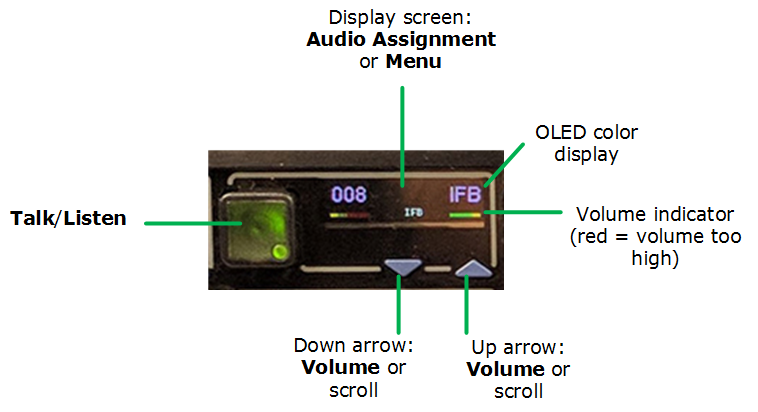

An example of a keyset (for a pushbutton panel) is shown below.

Keysets overview
