LEVEL ADJ (Level Adjust) Menu

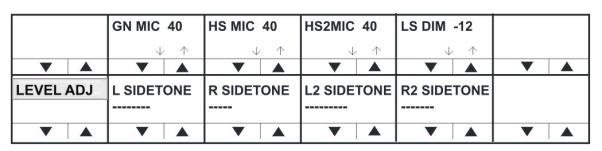

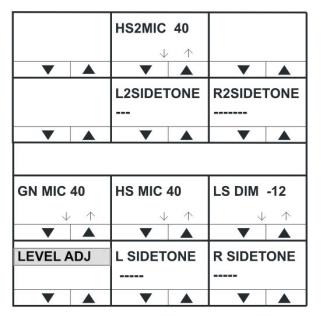

The LEVEL ADJ (Level Adjust) menu displays the audio levels setup menu.



This menu adjusts the audio gain values for gooseneck panel microphone and headset microphones to preset levels of 20, 40, 50, 60, 70 or 80 db. The sidetone levels can be set for the first headset (front panel connector) and the second headset (auxiliary audio connector).

Adjust the gain values and sidetone levels using the up / down buttons or the rotary control.

If you change these parameters locally, the EHX software can only change It by performing a full reset. Otherwise, the EXH software can download changes without a full reset.

Menu option Description / comments
GN MIC Gooseneck microphone gain.
HS MIC First headset microphone gain.
HS2MIC Second headset microphone gain.
LS DIM The amount the loudspeaker is dimmed by when a talk key is pressed (-70dB, -20dB, -12dB, -6dB, -3dB, 0dB).
L SIDETONE First headset left sidetone level. The key status (lever key) or pushbutton or talk button (rotary) is lit red when the left sidetone is on.  To toggle left sidetone between ON and OFF press the pushbutton or press the lever key down or press the talk button (rotary). The default sidetone level is -9dB, the minimum level is -15.5dB.
R SIDETONE First headset right sidetone level. The key status (lever key) or pushbutton or talk button (rotary) is illuminated red when the right sidetone is on.To toggle right sidetone between ON and OFF press the key pushbutton or press the lever key down or press the talk button (rotary).  The default sidetone level is -9dB, the minimum level is -15.5dB.
L2SIDETONE Second headset left sidetone level. The key status (lever key) or pushbutton or talk button (rotary) is illuminated red when the left sidetone for the second headset is on.To toggle left sidetone between ON and OFF press the key pushbutton or press the lever key down or press the talk button (rotary). The default sidetone level is -9dB, the minimum level is -15.5dB.
R2SIDETONE Second headset right sidetone level. The key status (lever key) or pushbutton or talk button (rotary) is illuminated red when the right sidetone for the second headset is on.To toggle right sidetone between ON and OFF press the key pushbutton or press the lever key down or press the talk button (rotary). The default sidetone level is -9dB, the minimum level is -15.5dB.

When a monaural headset is used only the headset left sidetone adjust operates. The right sidetone adjust has no effect.

To return to the LOCAL PREF menu, press the Reply key / Reply key talk button (LEVELADJ).
