Iris lever panel (32 key)

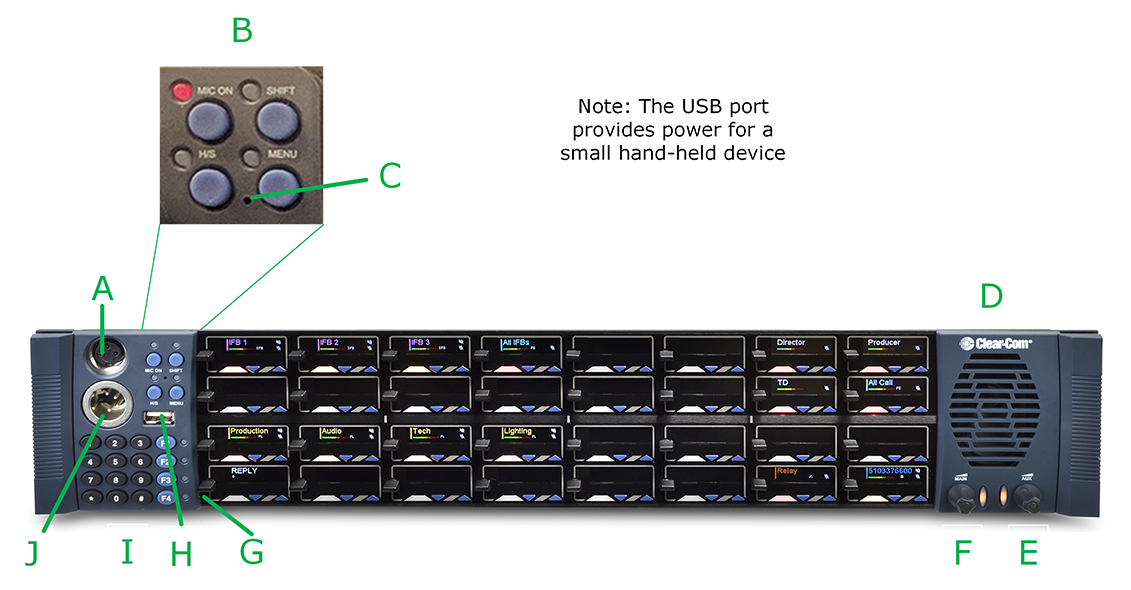

32-key Iris lever panel
| Item | Description |
|---|---|
| A | Microphone socket |
| B |
Microphone ON push button with LED indicator
Shift Page SELECT button with LED indicator Headset SELECT button with LED indicator MENU SELECT push button with LED indicator |
| C | Pin reset |
| D | Loudspeaker |
| E | Auxiliary volume control indicator LED. Rotate for volume control. Quick push of volume control for Listen Again function. Push and hold to display listen labels in the keyset display screens. |
| F | Main volume control with indicator LED. Rotate for volume control. Push volume control to cut loudspeaker. |
| G | Reply key |
| H | USB connector |
| I | Dial keypad |
| J | Headset socket |
32-key Iris lever panel controls and connectors
