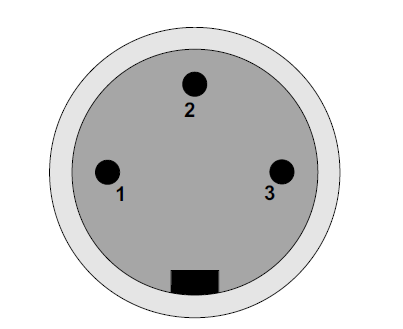

Microphone connector
Microphone connector
| Pin | Description / comments |
|---|---|
| 1 | Screen |
| 2 | Microphone input + |
| 3 | Microphone input - |
Microphone connector pinouts
| Note: | Configuration of the wrong type of microphone or headset will degrade or nullify the audio from the panel or worse still, damage the microphone or headset. |
