Default OLED colors



Entity Default Color display
Global default White
Interruptible Foldback (IFB) Purple
Partyline Yellow
Direct Pink
Control Red
Fixed Group Aqua
Sort Group Dark Pink
Tel14 Royal blue

Default OLED colors for Iris panel displays

Change OLED colors

OLED color settings can be changed by:

  • Entity type (for instance, partyline, IFB). Change OLED colors on a global level in System Preferences.
  • Specific entity (for instance, color the key from a director panel red). Change OLED colors on specific devices in port properties.
  • Individual key on a panel (right click on the panel mimic in EHX and select Visual Indication Override to activate this feature).

The color setting changes take the following priority:

  1. Visual indication Override changes (priority 1)
  2. Specific entity changes (priority 2)
  3. Global changes from System Preferences (priority 3)

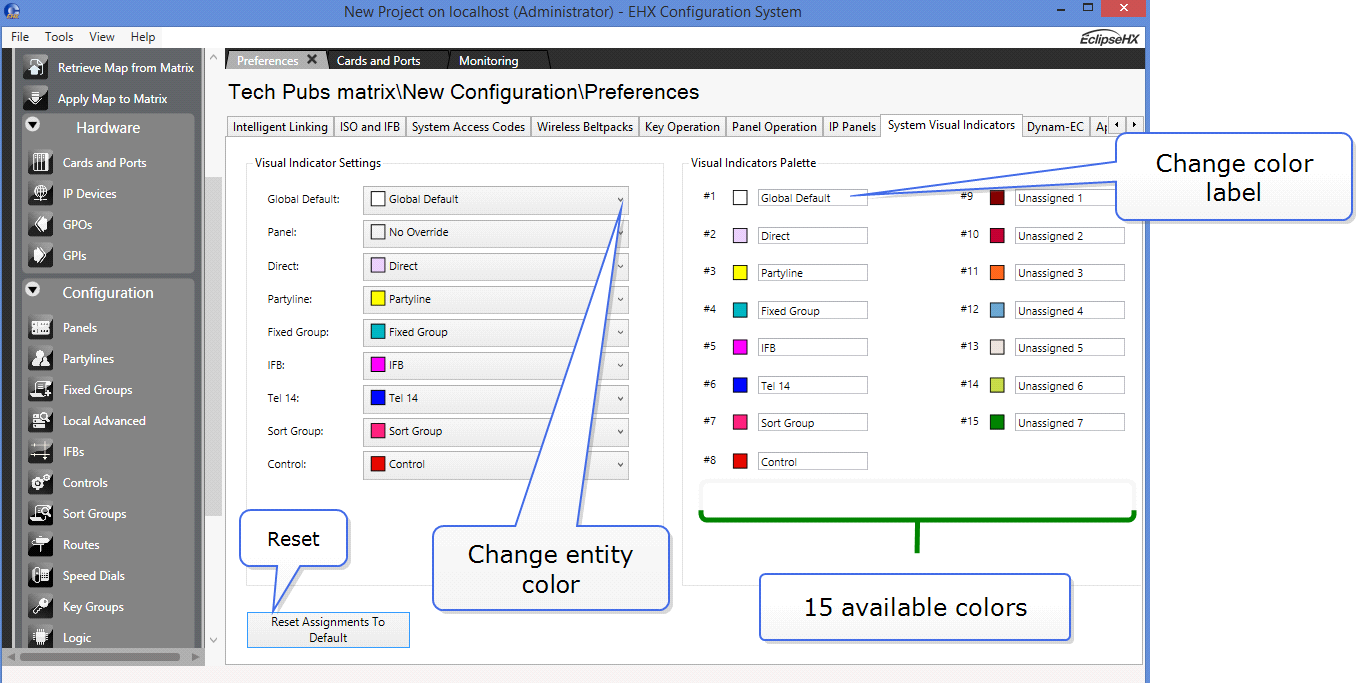

To change entity color displays, open the EHX software and navigate to Matrix>Configuration>Preferences>System Visual Indicators.

Note: You can easily reset the colors back to default settings using the Reset Assignments to Default button.

Set Global color display settings to first priority

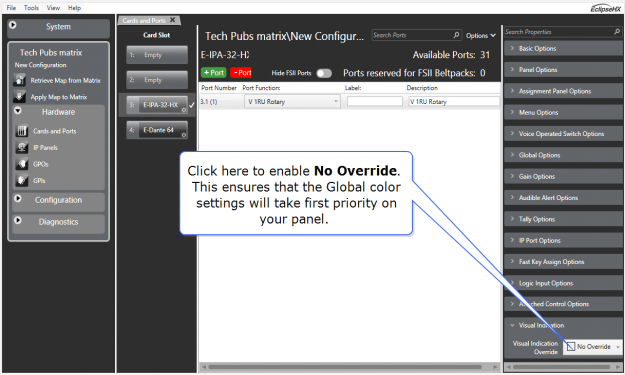

If you want the Global color settings to take first priority on your panel, you can enable No Visual Indication Override from port properties.

Navigate to: Hardware > Cards and Ports > Port Properties

The visual indication feature has been designed for maximum flexibility in use. For more detail on how to use the color settings please see the EHX User Guide, Chapter 17, Panel Programming, Configuring V-Series Iris panel color displays.
