Power connector wiring
The power supply is a 4 pin socket which is connected to an external 12V power supply. The pinout for the connector is shown below.

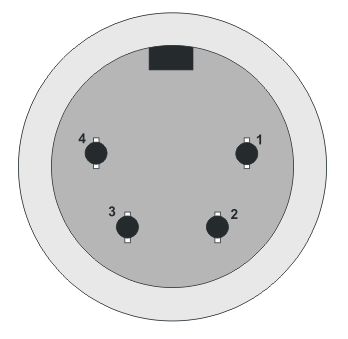

Iris power connector
Iris power connector pinout
| Pin | Description |
|---|---|
| 1 | Not connected |
| 2 | 12VDC |
| 3 | Not connected |
| 4 | 0V |
