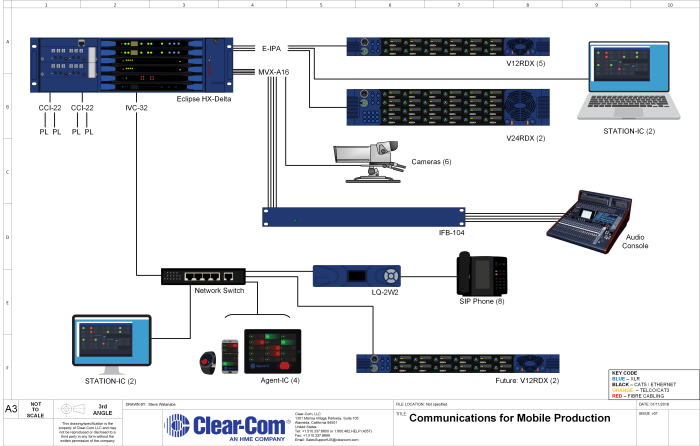

Application Diagram




Comms for Mobile Production

-->

Many colleges have sprawling campuses that house sports venues, auditoriums, theatres or very large conference rooms. At various times, each may need the ability to execute a production from that locale. The combination of small matrix frame, Station-IC, Agent-IC and SIP end points allows a crew to easily move from venue to venue.

Application Notes

An Eclipse Delta frame allows point to point communication between panels, and IFB capabilities to talent. An IVC-32 card connected to a switch with an LQ device provides SIP capability, Station-IC on computers and mobile users on Agent-IC. This fairly light weight solution gives a school the ability to manage productions from any locale. The system can easily be scaled to fit various types of productions, from sports to major school announcements.

Featured Products used in this Application:
