Introduction

HelixNet® Partyline is a digital intercom system that combines the simplicity and ease of use of an analog partyline system with the quality and deployment flexibility of Ethernet networks.

 User stations can be added to the system without configuration

  • Simple and fast global web browser or front panel configuration

  • All HelixNet enabled partyline channels are available on every cable

  • Easy integration with other 2-wire or 4-wire systems

  • Standard Infrastructure:

    • Ethernet networks – PoE powered user stations

    • XLR Cables – daisy changing and passively splitting

    • Digital distribution for low noise floor

    Note: Cabling for a HelixNet system should always be screened.

HelixNet wired partyline intercom

  • 24 HelixNet enabled channels*

  • 128 HelixNet endpoints (beltpacks, remote station, speaker station)

  • 24 HXII-DPL Powerline devices

*Subject to licensed port capacity

This guide helps you install, configure, and use the HelixNet Partyline system when used with the Arcadia® Central Station.

HelixNet wired user stations (beltpacks, remote stations and speaker stations) are connected to the Arcadia Central Station on the LAN port that is being used for Admin (default LAN 1) using Cat 5, 5e or 6 Ethernet cable (RJ45).

HelixNet user stations can be powered via XLR Powerline or PoE Ethernet. HelixNet remote and speaker stations can also be locally powered.

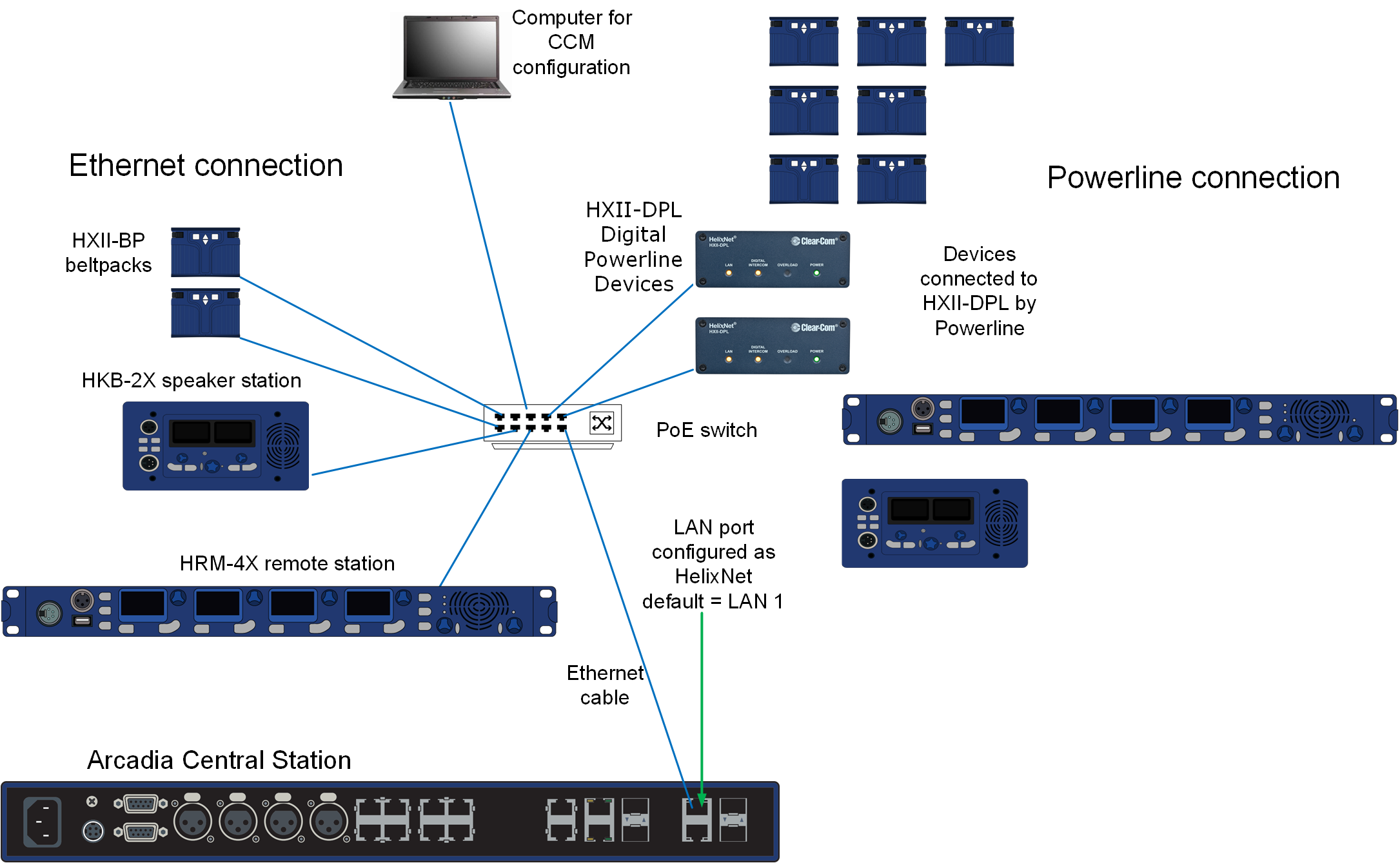

An example of a HelixNet system connected to an Arcadia Central Station is given below.

Note: When using an IEEE-802.3af compliant PoE switch, you must take into account the switch's power budget. Each HXII-BP requires 4 Watts. The HelixNet remote and speaker station each require 13 Watts. Do not exceed the power budget of the switch when attaching devices.

Bear in mind the following:

  • You can enable up to 24 channels for HelixNet. One HelixNet enabled channel consumes one licensed port.

  • User station keysets can be assigned to any HelixNet enabled channel.

  • The speaker station can be used with a helixNet speaker station enclosure or inside a NEMA standard 4-gang wall box.
