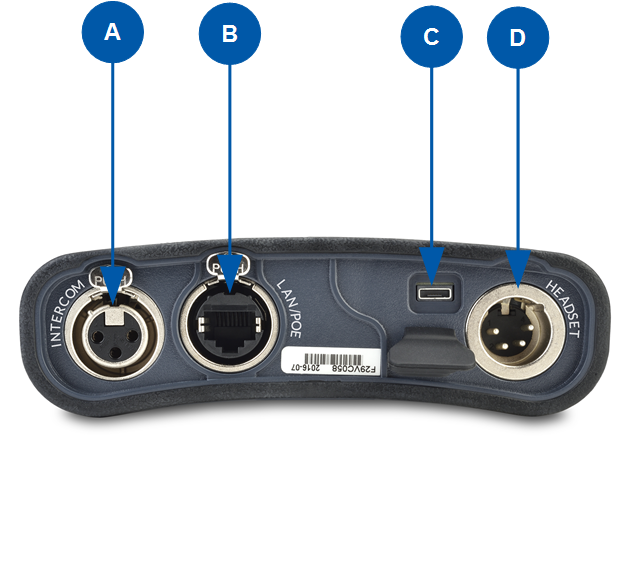

HXII-BP Beltpack (Bottom View)
|
Key to HXII-BP user controls (bottom view) |
||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Feature |
Description |
|||||||||||||||||||||||||||
|
|
Powerline (Digital Partyline) (3-pin female XLR connector).
|
|||||||||||||||||||||||||||
|
|
etherCon connector. Used for Power over Ethernet (PoE).
When using PoE, the beltpack draws 4 Watts from the PoE switch. |
|||||||||||||||||||||||||||
|
|
USB 2.0 (Micro-AB) connector |
|||||||||||||||||||||||||||
|
|
Headset connector HX-II-BP-X headset connection: 4-pin XLR male
HX-II-BP-X5 headset connection: 5-pin XLR female
|
|||||||||||||||||||||||||||
