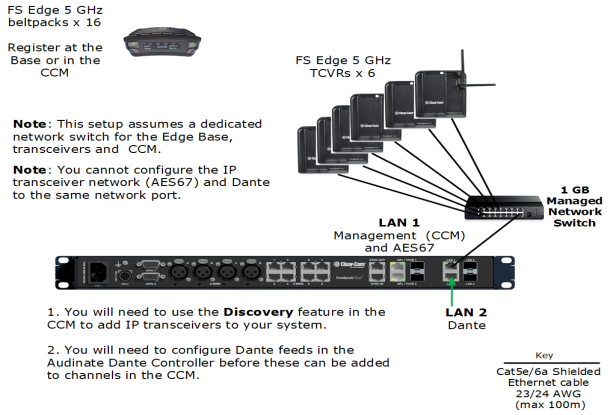

FreeSpeak Edge Base with FreeSpeak Edge IP Transceivers
This setup has a total of 6 FS Edge transceivers with 16 beltpacks. The transceivers are connected via a network that is configured for AES67 traffic. These are configured using the CCM. There are four 2-wire partylines and a Dante network.
| Note: | The Dante network must be on a different VLAN or network from the IP transceivers. |
| Note: | The AES67 network must be set up correctly for the IP transceivers in order to meet the needs of Clear-Com IP transceivers for high levels of PTP accuracy. |
See the AoIP Network Recommendations guide, available from the Clear-Com FSII Knowledge Center.
Outline of General Setup and Configuration
For network setup, see Network Setup for IP Transceivers.
To access the CCM, see The Core Configuration Manager (CCM).
To add IP transceivers to your system, see Using FreeSpeak Wireless Intercom.
For information on the connection process for IP transceivers, see the Quick Start Guides (QSGs) for FS Edge IP transceivers available from the FreeSpeak Edge Knowledge Center.
For information about connecting to 2-wire systems, see:
Using 2-Wire Systems.For information about connecting to Dante, see:
Using Dante Systems.For information about Channels, see Managing Channels.
For information about Roles, see Managing Roles.
