Monitoring System Status

You can monitor your system using the following features of the CCM:

  • Overview
  • Event Log
  • Logic

Overview

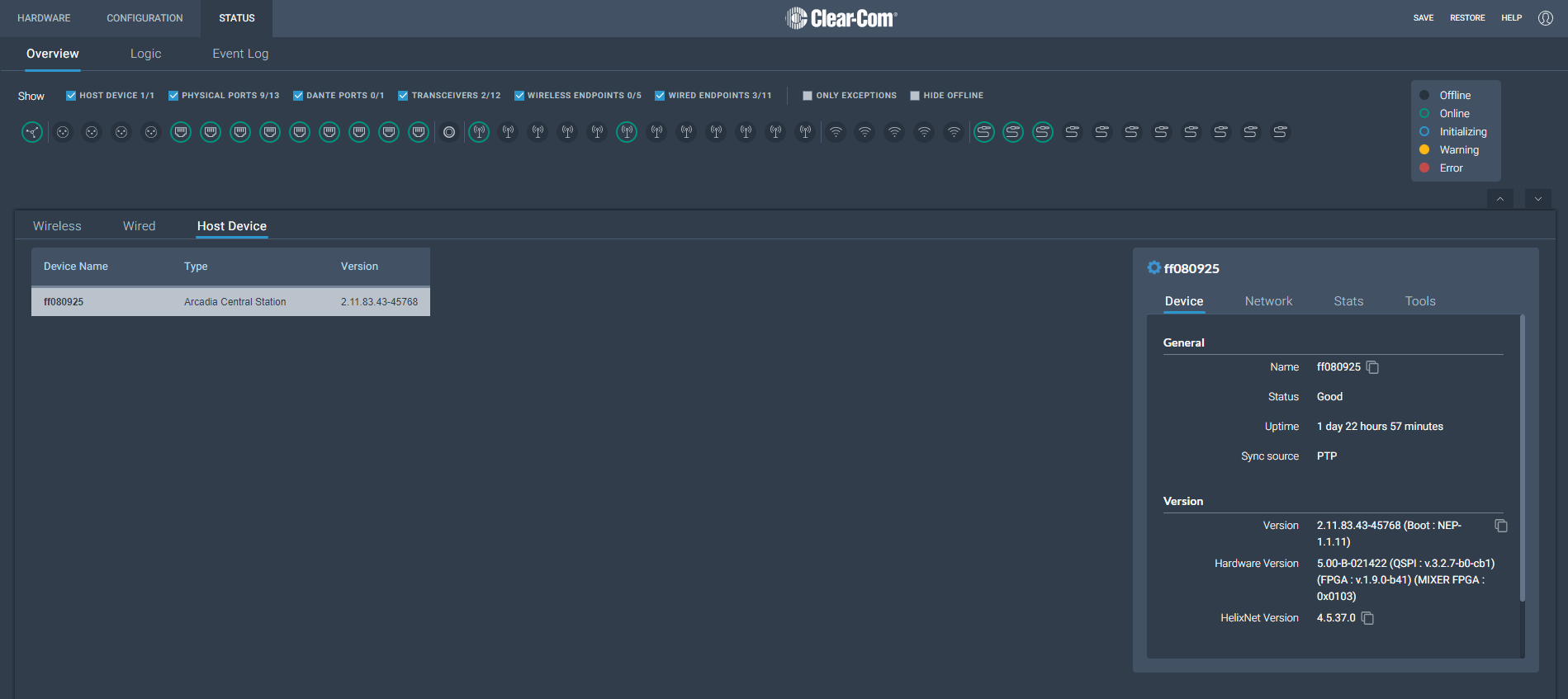

To see the Overview screen, navigate to Status > Overview. The following screen appears.

Status overview page

The Overview screen consists to two sections. There is an upper section that displays a list of system icons representing the ports, transceivers and endpoints and a lower section that gives detailed information about each connected device and about the Base Station.

Note:There is currently no detailed status for 2W, 4W and Dante.

System Icons
