Managing Channels

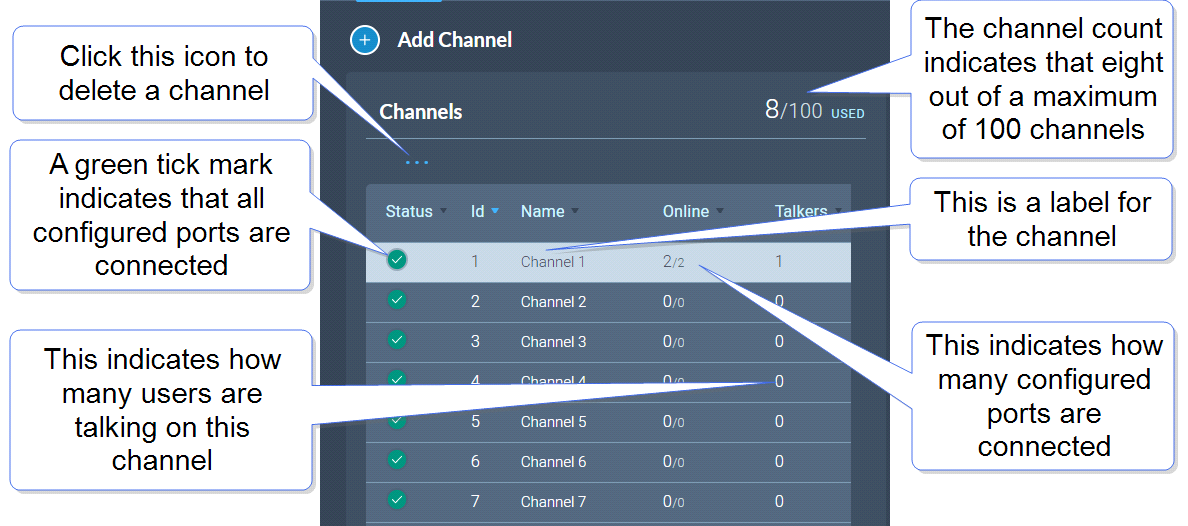

Status

A green tick mark indicates that all the ports that are configured for the channel are connected. Otherwise, a warning triangle is shown.

Name

This field contains a label that enables you to identify the channel.

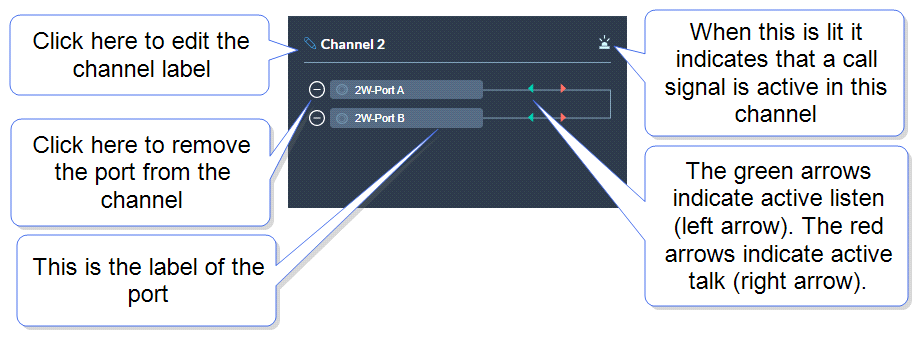

Note: A label can contain up to 10 characters. You can edit this label from the center panel.

Online

This indicates how many of the total channel members are online.

Talkers

This indicates how many members have active talk routes on this channel.

To add ports to a channel:

1. From the Channel panel, select the channel in which the port is to be added.

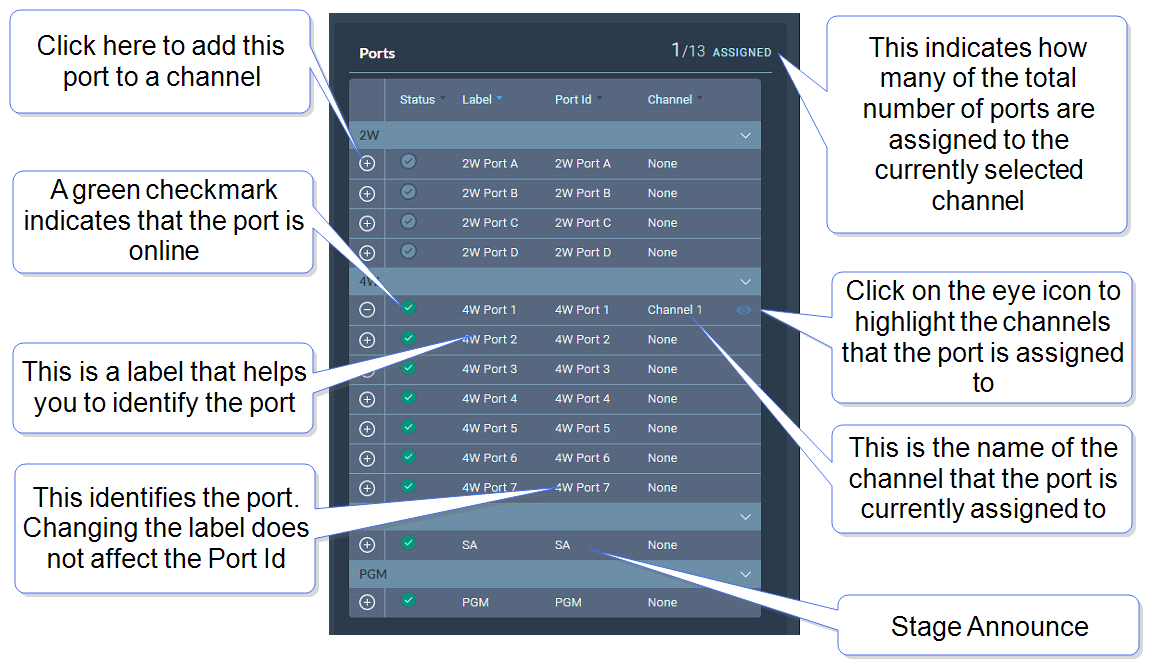

2. From the Ports panel, click the add port icon of the port that you require.



   The port is now added to the channel, and appears in the list of ports in the center panel.



To delete a channel:

1. From the Channels panel, select the channel that you want to delete.

2. Remove all the ports from the channel

   Note: If you do not remove the ports, you will be prompted to do so in step 3.

3. Click the More Actions icon , and select Delete.
