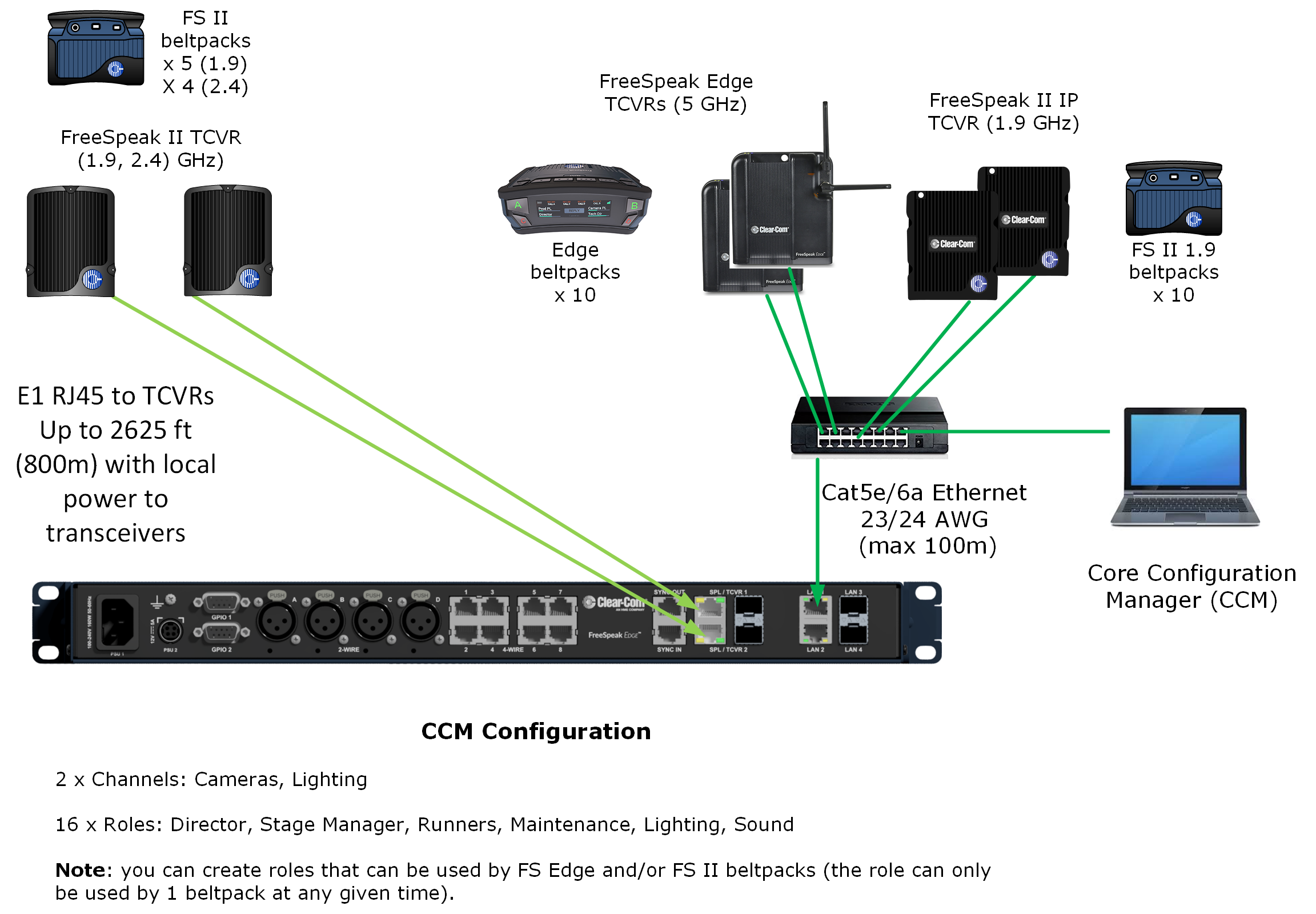

Split Frequency Setup (5, 2.4 and 1.9 GHz System)

This setup has:

  • E1 FS II transceivers (1.9) with 5 beltpacks

  • E1 FS II transceivers (2.4) with 4 beltpacks

  • FS Edge IP transceivers (5) with 10 beltpacks

  • FS II IP transceivers (1.9) with 10 beltpacks.

The E1 Transceivers will automatically connect to the Base Station once powered, but the Edge IP transceivers require additional configuration in the CCM and must be connected to a network that is configured for AES67 traffic.

Split frequency set up
