Saving and Restoring System Configuration
Clear-Com recommends that you make a backup of your system configuration using the Save option that is available in the CCM and the front panel menu system.
Saving System Configuration in the CCM

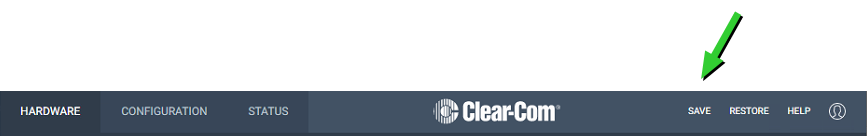

The Save and Restore options are available in the CCM top navigation bar.
When you click Save, all system configuration; channels, roles and network details are saved to a file (.cca) on your computer.
Saving System Setup in the Front Panel Menus
Insert a USB drive into the USB connector on the front of the Base Station.
Press the Menu button.
Using the rotary controllers, navigate to Administration > Settings > Save.
Push the 4th rotary controller. System setting are saved to the USB drive. The progress of this Save is shown in the notification bar on the front panel.
Restoring System Configuration
Your system configuration can be restored to the Base Station at any time using the Restore button in the CCM and also from the front panel menu system.
On restore, the saved configuration is reapplied to the Base Station. The following aspects of the configuration are optionally restored:
Network settings (IP addresses)
Over The Air system ID.
You do not get these options when restoring by USB directly to the Base Station. If you want to restore system settings taken from different Stations, you must use the CCM Restore option, as restoring directly from the Base Station in this situation would restore network and OTA system ID and IP and could cause wireless ID conflicts.
