Hardware Page Overview
The Hardware page of the CCM is where you set up your system. From the Hosts tab you can configure your Station settings.
The Resources Page
Click the Resources tab to see the resources page. This gives an overview of the hardware and ports that are present. From this page, you can use the Add Resource button to:
- View a list of both discovered and registered IP transceivers
- Add any discovered IP transceivers to the system
- Remove any registered IP transceivers from the system
- Register beltpacks to the system
- Create Dante ports
In the Hardware Resources page you can:
- Adjust settings on interface ports

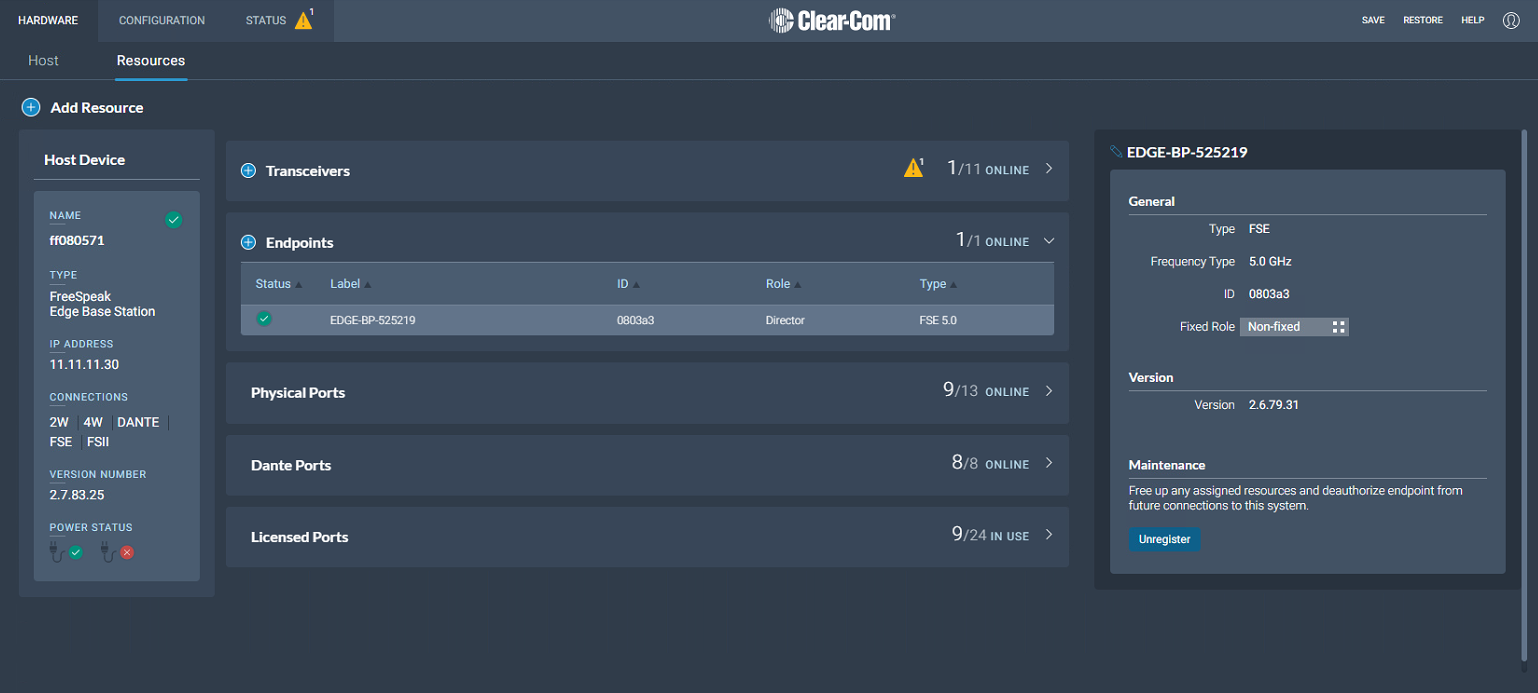

If you click the down arrow in the Endpoints section of the screen you will see a list of connected Endpoints. Select an Endpoint (beltpack) to show configuration details such as:
Fix/unfix a role. If a role is fixed to a beltpack, the user cannot select from a list of roles on powering on the beltpack.
Unregister a beltpack from the system.
