Operating the FS II IP Transceiver (IPT)

This chapter describes how to use the FreeSpeak II IP transceiver.

For information about operating the FS II Transceiver that connects to an E-Que card, see Operating the FS II Transceiver.

The FS II IP Transceiver (IPT) forms the transmission link between the FS II beltpacks and the matrix. It offers internal omnidirectional (all directions/spherical) coverage. Multiple units are used to support the beltpacks and to create larger, customized coverage areas. Each transceiver is connected to the E-IPA-HX card on the matrix via an AES67 connection.

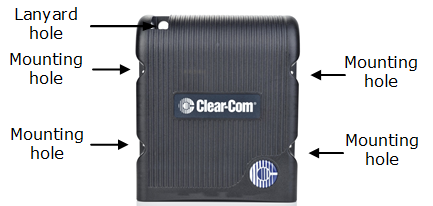

The unit has two methods of fixing:

• Four screw points for mounting on a flat surface.

• Two microphone stand connectors, 3/8 in and 5/8 in.
