PD2203 Front connector panel

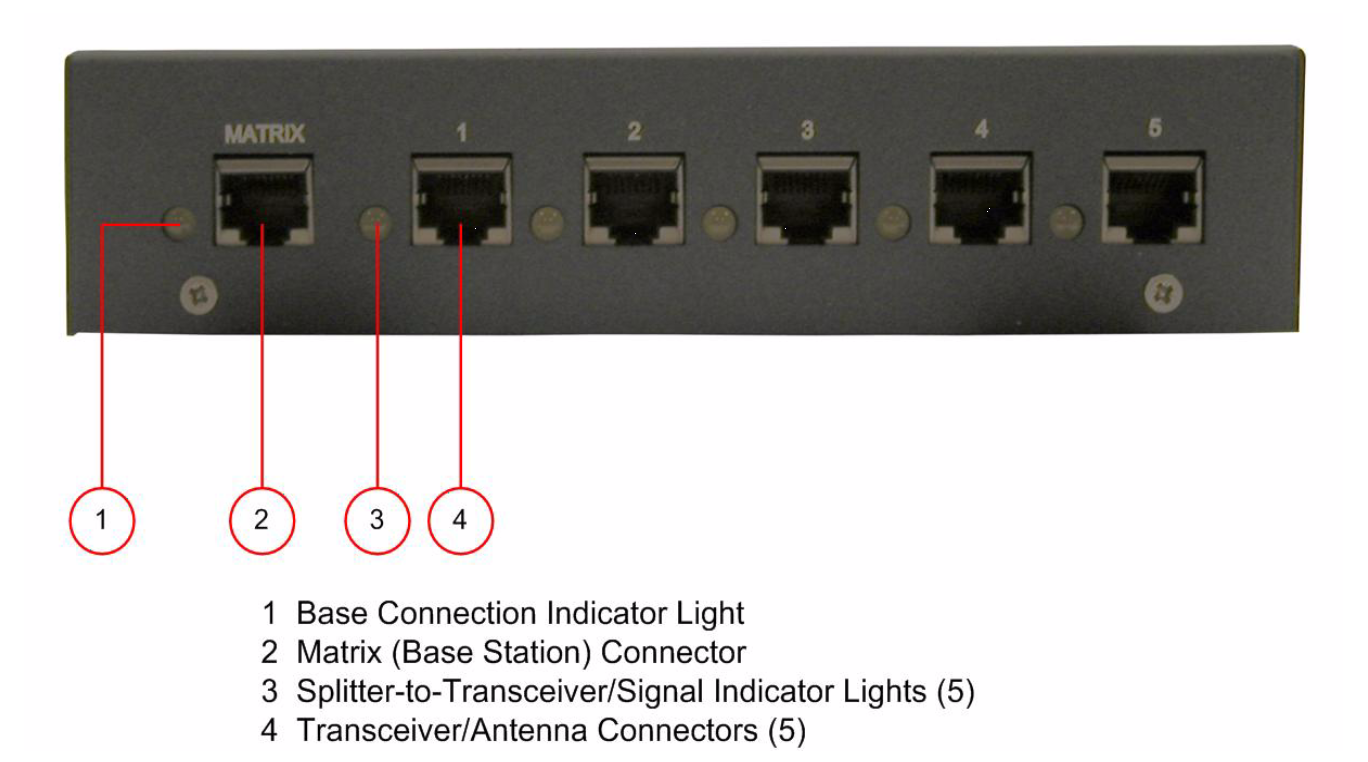

Figure 6‑8 FS II Splitter Front Connector Panel

Matrix connection indicator light

This yellow light indicates that the PD2203 splitter is receiving data from the matrix.

Matrix connector

This RJ-45 connector accepts a 4-pair data cable from the E-Que-HX card on the matrix. This cable can be up to 1,000 metres (3,200 feet) in length if 24AWG cable is used or up to 500 metres (1,600 feet) if 26AWG cable is used.

It is recommended that shielded Ethernet cable (for instance, CAT-5/5e/6) is used.

Splitter-to-transceiver signal indicator light

These yellow lights indicate that a connection from the matrix is available to the particular transceiver connected to that port.

Transceiver connectors

These five RJ-45 connectors are used to connect up to five remote transceivers to the splitter, and via the splitter to the matrix. Each of these cables can be up to 1,000 metres (3,200 feet) in length if 24AWG cable is used or up to 500 metres (1,600 feet) long if 26AWG cable is used.

Note: It is recommended that shielded Ethernet cable (for instance, CAT-5/5e/6) is used.
