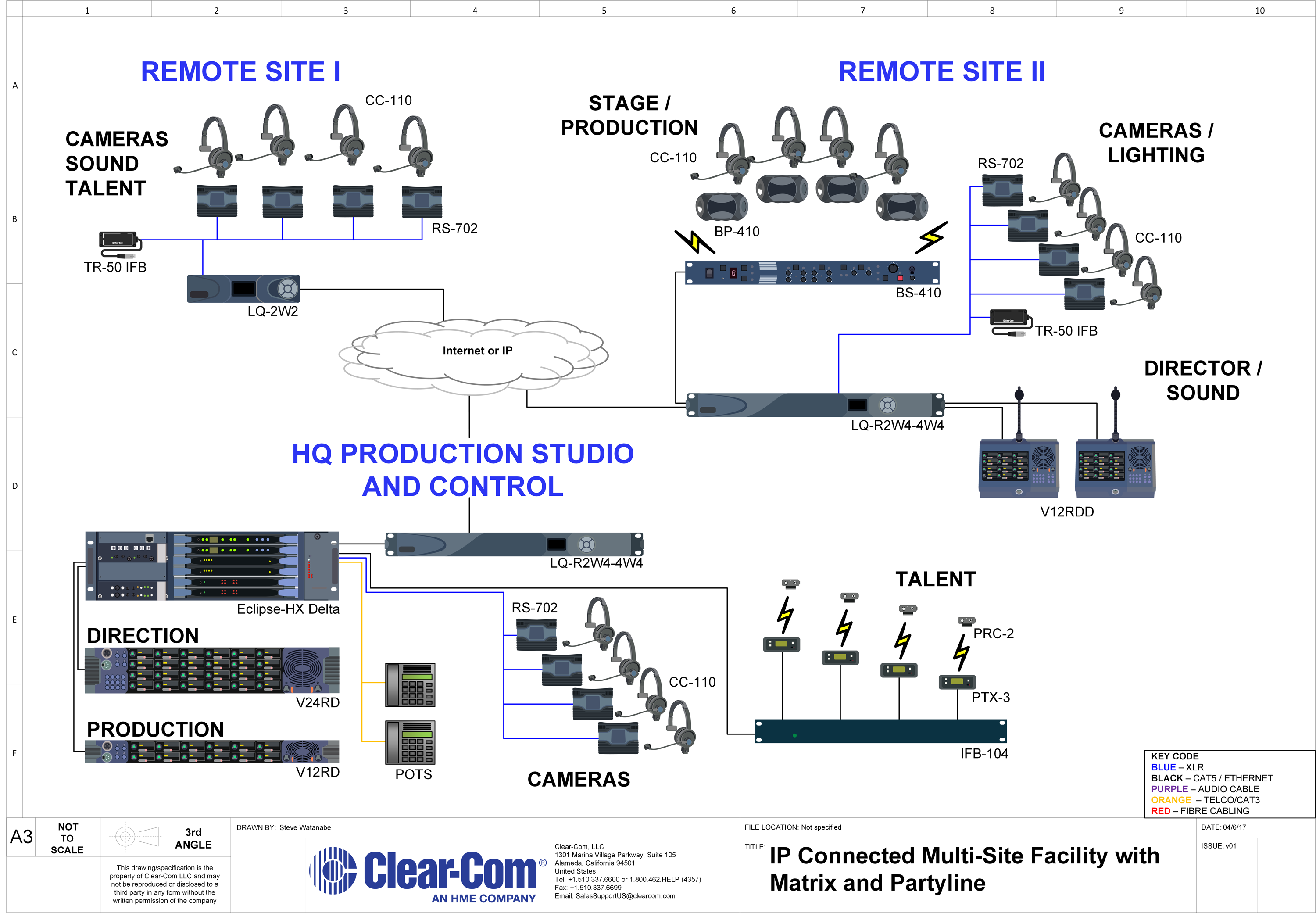

Application Diagram




IP Connected Multi-site Facility with Matrix and Partyline

-->

Large companies with remote locations looking to provide their employees with real-time corporate communications need IP solutions. With program feeds coming from remote sites as well as the main studio, corporate teams must function like broadcast news and communicate like professionals.



How it Works



During a live production, staff at the HQ studio communicate internally and to remote sites from panels connected to a matrix frame. From the matrix, audio communication is then sent over LAN or public internet by connecting IP device to IP device.



Application Notes



An LQ Series box or rack is located at every remote site. Remote crews point to studio or remote IP addresses and the LQ boxes auto discover the network. Remote sites leverage Encore or DX-410 and connect back to the Eclipse HX-Delta.
