LQ Series v4 and Matrix

LQ Series v4 software offers Clear-Com Matrix systems with a simple way to add SIP or Agent-IC mobile app to their intercom deployment. With a matrix integration, beltpacks can make calls directly to SIP phones and vice-versa. This allows for a simple and powerful solution.

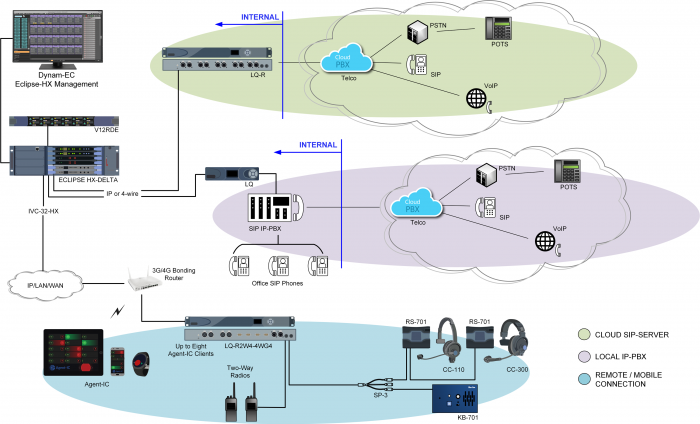

How it Works

An LQ Series device can utilize up to eight SIP licenses. When configured properly using the EHX management tool Dynam-EC, a phone number can be attached to a channel allowing a beltpack, speak station or panel key to make a call to a specific individual with SIP capability. In multiple applications, this offers high quality IFB capability. Eight Agent-IC licenses can also be applied to an LQ Series device extending intercom communications to Wi-Fi/Cellular devices. A powerful way to scale up communications to contributor role individuals.

Featured Products used in this Application:

• Clear-Com Encore® Analog Partyline Intercom Systems
  • RS-701
  • KB-701
• Eclipse HX Digital Matrix Intercom System
  • Eclipse HX-Delta
  • V-Series 12-key 1RU Rotary Panel
• LQ™ Series IP interfaces
  • LQ-R
  • LQ-R2W4-4WG4
