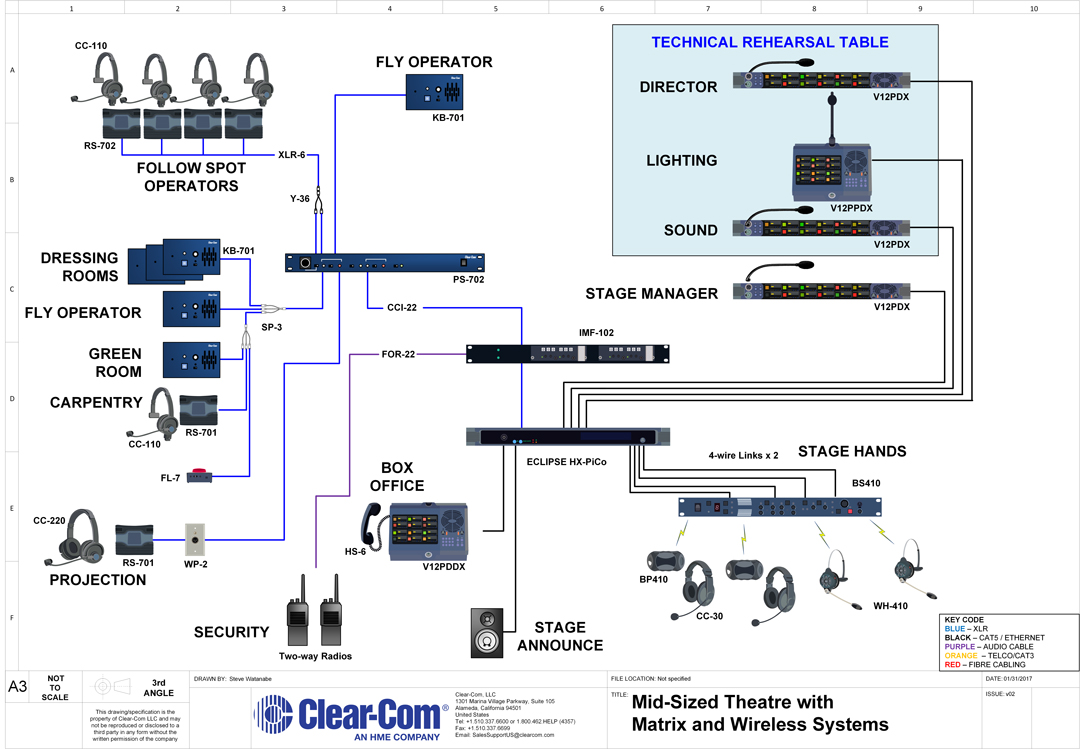

Application Diagram

Mid-sized Theatre with Matrix and Wireless Systems


Live productions in theatre need perfectly timed cues and executions. Communication between Stage, Lighting, Sound and Talent need uninterrupted flow in order to produce a seamless performance.

How It Works

A Digital Matrix frame connects to panels, wireless/wired devices, and wall-mount speaker stations through multiple ports. The network supports 4-wire intercom directly with device ports, and 2-wire communications through interface modules.

Application Notes

Eclipse-HX PiCo is a 1RU digital matrix with 36 ports. Tech table V-Series Panels connect directly to the PiCo. The two-channel DX410 carries intercom to wireless beltpacks for stage hands. Stationary positions and talent are cued with Encore wired analog one or two-channel beltpacks and speaker stations.

Featured Products used in this Application:
