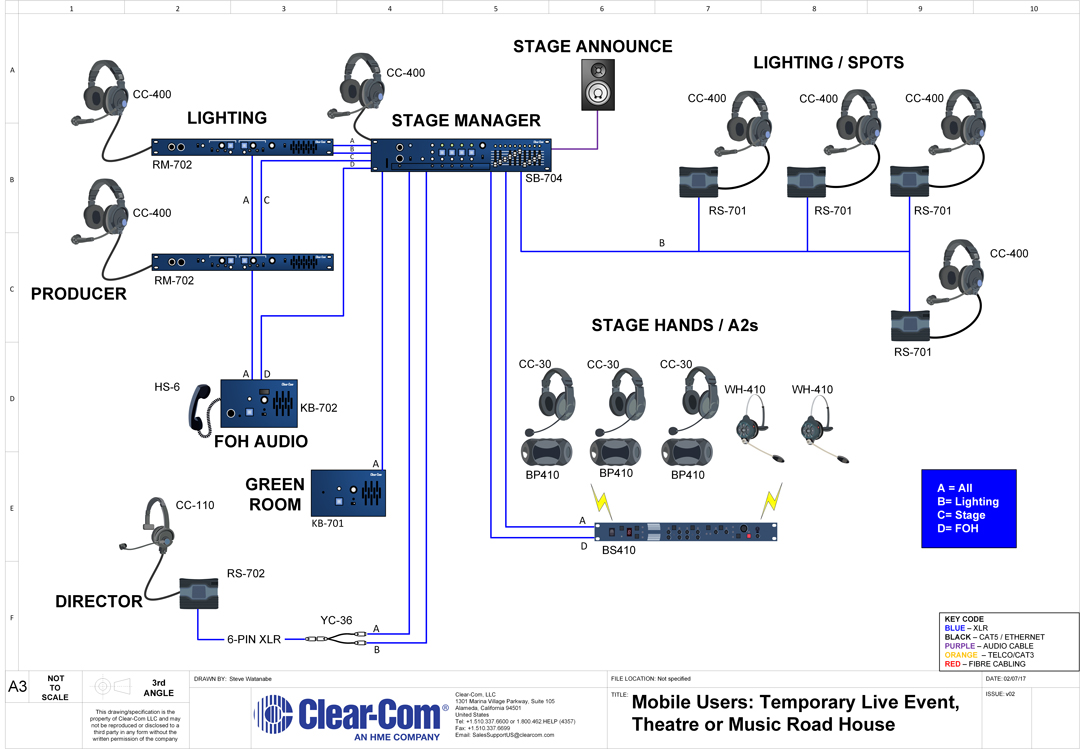

Application Diagram




Mobile Users: Temporary Live Event, Theatre or Music Road House

-->

A Stage Manager is central to the performance at a live venue. Communicating direction and ques to mobile stage hands, lighting, talent and additional staff.



How It Works



The switchboard main station carries four-channels to 10 ports over 2-wire cable. It allows a channel each for lighting, stage hands, production and a show relay. Stage hands move freely with wireless beltpacks, or all-in-one headsets, connected to a central base station.



Application Notes



An SB-704 carries channel communication to DX410 base station for wireless communication to stage hands. Analog Partyline remote stations and beltpacks help static positions connect with each point.
