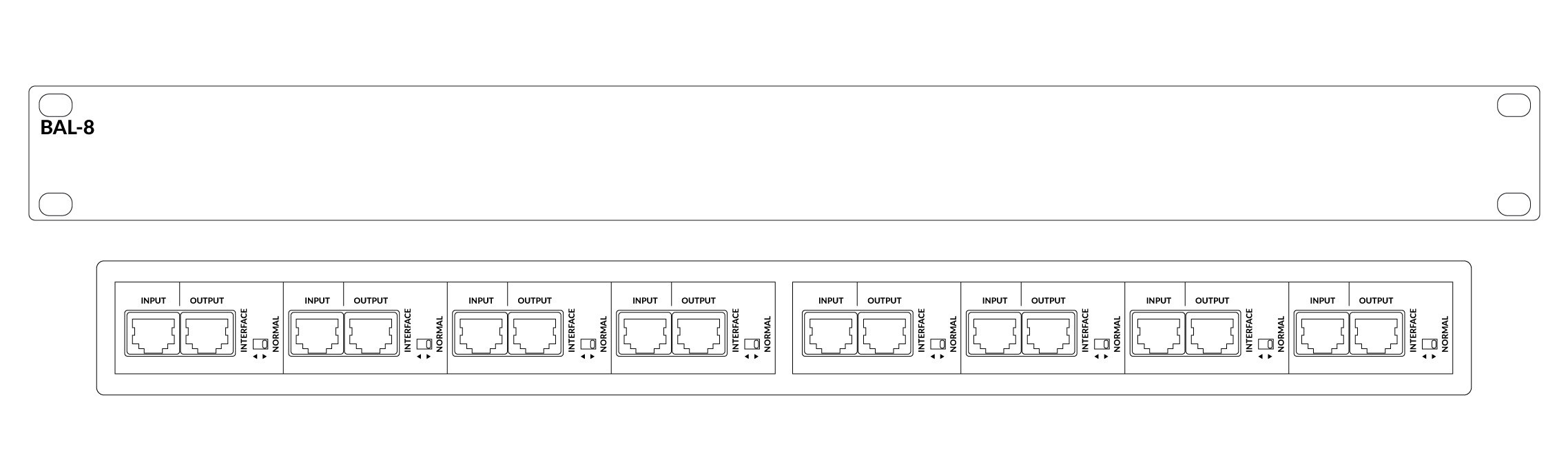

Output: (8) RJ-45 (to interfaces)
Input: (8) RJ-45 (from Matrix)
Indicators: “Power-on” LED
Isolation: All balanced audio pairs (2 per port connection) are transformer isolated
Frequency Response: 100 Hz – 15 kHz
Max Level: +10 dBm
Environmental
Operating Temperature: 0º – 50º C (32º – 125º F)
Humidity: 20% to 90%, non-condensing
1.75 x 19 x 2 in (HxWxD)
(89 x 483 x 51 mm)
5.0 lbs (2.3 kg)
Interface mode allows connections to indicate to the system software that a direct connection is made, while in Normal mode, the data pairs are unaffected.
