MVX-A16-HX

MVX-A16-HX

Spare 16-port Interface Card

  • Adds 16-ports of audio and data per card
  • For use with Eclipse HX Card Frames: HX-Omega, HX-Median and HX-Delta
  • Up to 15 cards supported per Eclipse HX card frame
    • Delta-Lite: Up to 2 cards
    • Delta: Up to 4 cards
    • Median: Up to 7 cards
    • Omega: Up to 15 cards
  • Uses balanced 4-wire audio and RS422 data interfacing
  • Eclipse HX Configuration Software (EHX)
Item Part Number:

MVX-A16-HX

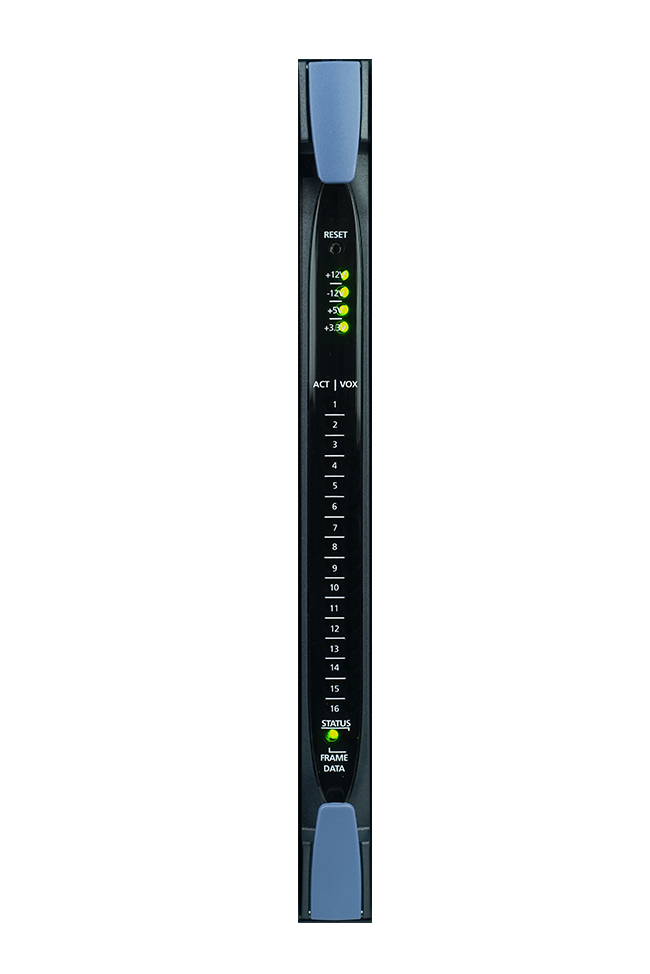

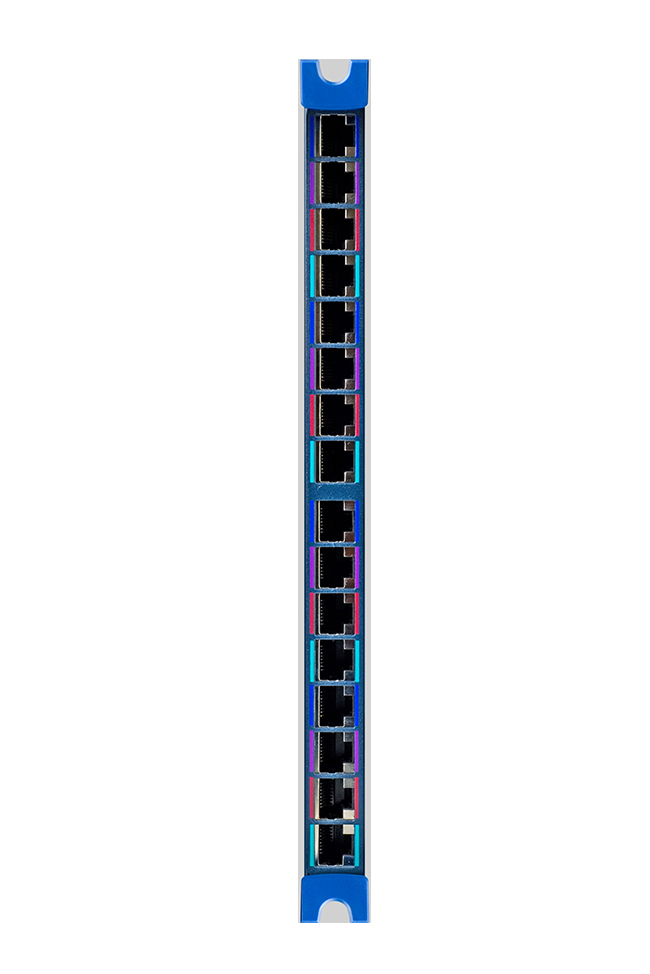

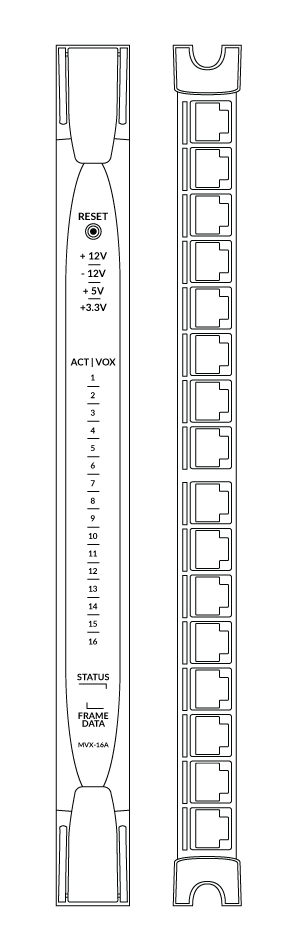

The MVX-A16-HX card provides Eclipse Matrix frames with an analog interface for connection to any analog device. With 16 RJ45 ports on the back plane of the card, it serves as the primary interface for analog connection to Clear-Com panels.

The MVX-A16-HX analog interface card communicates with Clear-Com panels or other analog audio equipment over a balanced, line-level analog audio connection and RS422 serial for control. The card connects up to 16 audio devices (such as user panels, interfaces, or 4-wire audio equipment) to the central matrix. Each analog connection to the card enables distribution of that audio to any other device within the Eclipse
system.

The MVX-A16-HX supports the following Clear-Com equipment: Panels ( V-Series, V-Series Iris, I-stations & ICS1016 & ICS-1008), LQ (LQ SIP for telephone connections), TEL-14, CCI-22 and FOR-22.

Technical Specifications

Audio

Audio Interface: 16, bi-directional
Input Format: Balanced
Output Format: Balanced
Ground Isolation: None; expected at User Panel/Station

Analog Port Card Outputs

Level:  0 dBu nominal
Impedance:  100 Ohms balanced
Frequency Response: 30 Hz–22 kHz ± 3 dB
Distortion:  <0.05 %, @ 0 dBu, 300 Hz to 10 kHz; <0.1 %, @ 0 dBu, 100 Hz to 20 kHz

Analog Port Card Inputs

Level:  0 dBv nominal
Impedance:  600 Ohms balanced
Frequency Response:  30 Hz–22 kHz ± 3 dB
Distortion:  <0.05 %, @ 0 dBu, 300 Hz to 10 kHz; <0.1 %, @ 0 dBu, 100 Hz to 20 kHz

Weight

Front Card: 1.64 lbs (0.75kg)

Rear Card: 9.2 oz (0.26kg)

Environmental

Operating Temperature: +32° F to +113° F (0° C to +45° C)

Storage Temperature: -22° F to +158° F (-30° C to +70° C)

Humidity: 90%, non-condensing

Dimensions

Height:

6RU (vertically in Eclipse HX-Median and Omega frames, or horizontally in Eclipse HX-Delta frames)

Depth:

Front Panel: 11.8in (300mm)

Rear Panel: 2.28 (58mm)
